Part Number: MB40C958V



MFG: FUJ

Package Cooled: QFP

D/C: 2001

Description: The MB40C958V is a high-speed CMOS process based D/A converter provided with the three-channel I/O for...


Urgent Purchase

MB40C958V General Description


The MB40C958V is a high-speed CMOS process based D/A converter provided with the three-channel I/O for RGB, allowing for independent control of the three channels.

MB40C958V Maximum Ratings

Parameter Symbol Rating Unit
Min. Max.
Power supply voltage VDD 0.3 +7.0 V
Digital input voltage VID 0.3 VDD+0.3 V
Analog output voltage VO 0.3 VDD+0.3 V
Analog output current IO 0 12 mA
Storage temperature Tstg -55 +125 °C
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.

MB40C958V Features

• Resolution                                         : 8 bits
• Linearity error                                   : ±0.5 LSB (max)
• Differential linearity error                  : ±1.0 LSB (max)
• Maximum conversion rate                 : 50 MSPS (min)
• Supply voltage                                  : single +5 V
• Digital input voltage range               : TTL level
• Analog output voltage range           : 2 Vp-p (0 to 2 V)
• Dissipation power                            : 220 mW (standard: analog output for RL = 200 , 2 Vp-p output)
• Additional capabilities                      : Reference voltage generator, power saving function, independent 3-ch VREF
• Package                                           : LQFP48

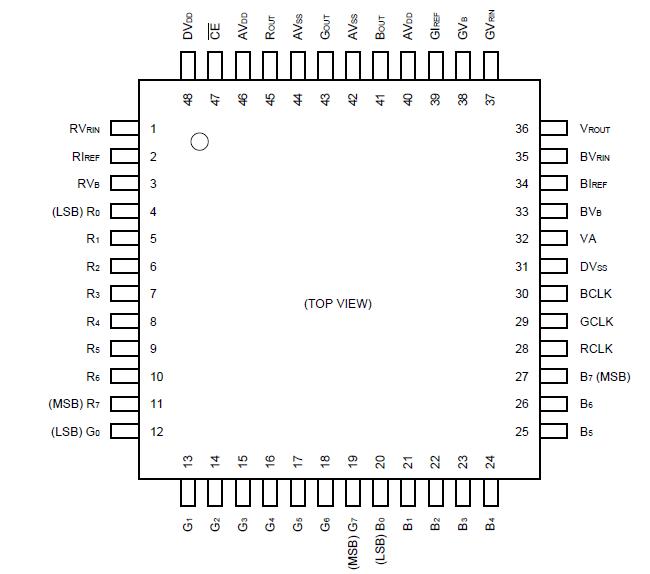

MB40C958V Connection Diagram

MB40C958V Connection Diagram

MB40C958V datasheet

MB40C958V
PDF/DataSheet Download

  • Datasheet: MB40C958V
  • File Size: 133705 KB
  • Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
  • Click here to Download
