MB47393 General Description


The Fujitsu MB47393 is a dual comparator which is designed to operate from a single power supply over a wide range of voltage. The input characteristics is equivalent of current industry standard comparator. Even though operated from a single power supply, the input common mode voltage range includes ground. Owing to adoption of clamp circuitry in input pins, mis-operation is prevented by negative input. The MB47393 is compatible with LM393.

MB47393 Maximum Ratings


                                                                                                            Ta = 25°C
Rating Symbol Value Unit
Power Supply Voltage VCC 36 V
Differential Input Voltage VID 36 V
Common-Mode Input Voltage VI 5 to +36 V
Output Short Current to GND - Infinite* -
Power Dissipation PD 350 (Ta55°C) mW
Operating Temperature Ta 20 to +75 °C
Storage Temperature TSTG -55 to +125 °C
* : This value is specified with respect to the short circuit from output to GND. However, short circuit from the output
      to VCC cause device destruction.
Note: Permanent device damage may occur if the above Absolute Maximum Ratings are exceeded. Functional
         operation should be restricted to the conditions as detailed in the operational sections of this data sheet.

MB47393 Features

• Wide power supply voltage range
  Single power supply -2V to 30V
  Dual power supplies -±1V to ±15V
• Wide input common-mode voltage range
  0V to (VCC 1.5)V
• Low input bias current -25nA typ.
• High sink current capability because of open collector output 40mA min.
• Package
   Plastic 8 pin DIP package (Suffix: P)
   Plastic 8 pin FPT package (Suffix: PF)
   Plastic 9 pin SIP package (Suffix: PS)

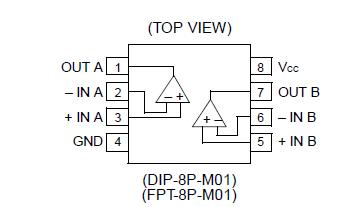

MB47393 Connection Diagram

MB47393 Connection Diagram

MB47393 datasheet

MB47393
PDF/DataSheet Download

  • Datasheet: MB47393
  • File Size: 83881 KB
  • Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
  • Click here to Download
