MB6013ABC-2

MIC CONDENSER ELEC -44+-2DB 6MM

product image

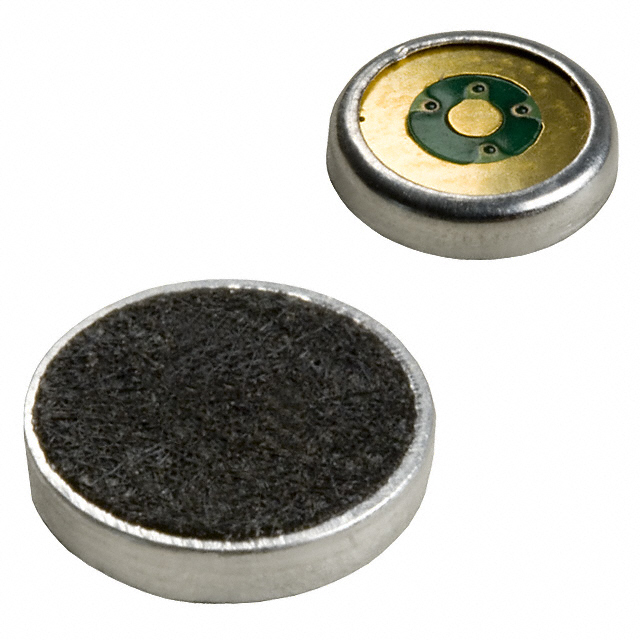

MB6013ABC-2 Picture
See larger image
SeekIC No. : 002845694 Detail

MB6013ABC-2: MIC CONDENSER ELEC -44+-2DB 6MM

MB6013ABC-2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB6013ABC-2
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: MB Manufacturer: Knowles Acoustics
Type: Electret Condenser Output Type: Analog
Direction: Omnidirectional Operating Supply Voltage : 2.6 V to 3.6 V
Frequency Range: 100Hz ~ 10kHz Sensitivity: -44dB ±2dB
S/N Ratio: 60dB Impedance: 2.2 kOhm
Voltage - Rated: 2V Current - Supply: 500µA
Port Location: Top Seal Rating: None
Termination: Solderless (requires holder) Size / Dimension: 6.00mm Dia
Height (Max): 1.55mm Shape: Circular

Description

Type: Electret Condenser
Output Type: Analog
Direction: Omnidirectional
Sensitivity: -44dB ±2dB
S/N Ratio: 60dB
Impedance: 2.2 kOhm
Current - Supply: 500µA
Port Location: Top
Seal Rating: None
Shape: Circular
Packaging: Bulk
Size / Dimension: 6.00mm Dia
Voltage - Rated: 2V
Frequency Range: 100Hz ~ 10kHz
Manufacturer: Knowles Acoustics
Series: MB
Termination: Solderless (requires holder)
Height (Max): 1.55mm


Parameters:

Technical/Catalog InformationMB6013ABC-2
VendorKnowles Acoustics
CategoryAudio Products
Sensitivity-44dB ±3dB
Voltage - Rated 2V
Current 500A
TypeElectret Condenser
Size / DimensionCircular - 6mm Dia x 1.3mm H
Frequency100Hz ~ 10kHz
S/N Ratio60dB
Filter Type10pF and 33pF
Impedance2.2K Ohm
TerminationSolderless (requires holder)
DirectionOmnidirectional
Port LocationTop
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MB6013ABC 2
MB6013ABC2
423 1041 ND
4231041ND
423-1041
