MB6015ASC-1

MIC CONDENSER ELEC -42DB SLDR

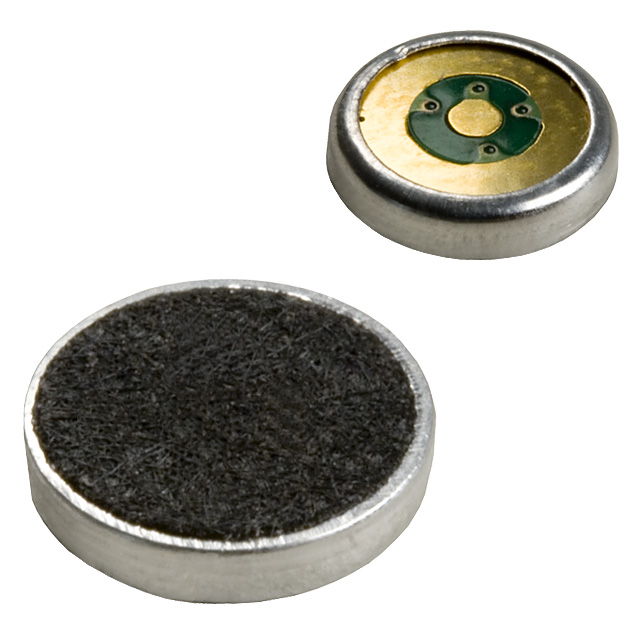

product image

MB6015ASC-1 Picture
See larger image
SeekIC No. : 002845748 Detail

MB6015ASC-1: MIC CONDENSER ELEC -42DB SLDR

MB6015ASC-1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB6015ASC-1
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: MB Manufacturer: Knowles Acoustics
Type: Electret Condenser Output Type: Analog
Direction: Omnidirectional Operating Supply Voltage : 2.6 V to 3.6 V
Frequency Range: 100Hz ~ 10kHz Sensitivity: -42dB ±3dB
S/N Ratio: 60dB Impedance: 2.2 kOhm
Voltage - Rated: 2 ~ 10V Current - Supply: 400µA
Port Location: Top Seal Rating: None
Termination: Solder Pads Size / Dimension: 6.00mm Dia
Height (Max): 1.65mm Shape: Circular

Description

Type: Electret Condenser
Output Type: Analog
Direction: Omnidirectional
S/N Ratio: 60dB
Impedance: 2.2 kOhm
Port Location: Top
Seal Rating: None
Shape: Circular
Packaging: Bulk
Termination: Solder Pads
Sensitivity: -42dB ±3dB
Voltage - Rated: 2 ~ 10V
Size / Dimension: 6.00mm Dia
Frequency Range: 100Hz ~ 10kHz
Current - Supply: 400µA
Manufacturer: Knowles Acoustics
Series: MB
Height (Max): 1.65mm


Parameters:

Technical/Catalog InformationMB6015ASC-1
VendorKnowles Acoustics
CategoryAudio Products
Sensitivity-42dB ±3dB
Voltage - Rated 2V
Current 400A
TypeElectret Condenser
Size / DimensionCircular - 6mm Dia x 1.5mm H
Frequency100Hz ~ 10kHz
S/N Ratio60dB
Filter Type10pF and 33pF
Impedance2.2K Ohm
TerminationSolder Pads
DirectionOmnidirectional
Port LocationTop
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MB6015ASC 1
MB6015ASC1
423 1090 ND
4231090ND
423-1090
