MB6M
-
Suppliers
DataSheet
General Description
MB6M Maximum Ratings
Ratings at 25°C ambient temperature unless otherwise specified.
| SYMBOLS | MB2M | MB4M | MB6M | UNITS | ||
| Device marking code | 2 | 4 | 6 | |||
| Maximum repetitive peak reverse voltage | VRRM | 200 | 400 | 600 | Volts | |
| Maximum RMS voltage | VRMS | 140 | 280 | 420 | Volts | |
| Maximum DC blocking voltage | VDC | 200 | 400 | 600 | Volts | |
| Maximum average forward output rectified | I(AV) | Amp | ||||
| current at TA=30°C - on glass-epoxy P.C.B. | (NOTE 1) | 0.5 | ||||
| on aluminum substrate | (NOTE 2) | 0.8 | ||||
| Rating for fusing (t<8.3ms) | I2t | 5.0 | A2sec | |||
| Maximum instantaneous forward voltage drop | VF | 1.0 | Volts | |||
| per leg at 0.4A | ||||||
| Maximum DC reverse current at | TA=25°C | IR | 5.0 | A | ||
| rated DC blocking voltage per leg | TA=125°C | 500 | ||||
| Typical junction capacitance per leg | (NOTE 3) | CJ | 13.0 | pF | ||
| Typical thermal resistance per leg | (NOTE 1) | RQJL | 20.0 | °C/W | ||
| (NOTE 1) | RQJA | 85.0 | ||||
| (NOTE 2) | RQJA | 70.0 | ||||
| Operating junction and storage temperature range | TJ, TSTG | -55 to +150 | °C | |||
(1) On glass epoxy P.C.B. mounted on 0.05 x 0.05" (1.3 x 1.3mm) solder pads
(2) On aluminum substrate P.C.B. with an area of 0.8 x 0.8 x 0.25" (20 x 20 x 6.4mm) mounted on 0.05 x 0.05" (1.3 x1.3mm) solder pad
(3) Measured at 1.0 MHZ and applied reverse voltage of 4.0 Volts
MB6M Features
· Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
· This series is UL recognized under Component Index,
file number E54214
· Glass passivated chip junctions
· High surge overload rating: 35A peak
· Saves space on printed circuit board
·High temperature soldering guaranteed:
260°C/10 seconds, at 5 lbs. (2.3kg) tension
Classification 94V-0
· This series is UL recognized under Component Index,
file number E54214
· Glass passivated chip junctions
· High surge overload rating: 35A peak
· Saves space on printed circuit board
·High temperature soldering guaranteed:
260°C/10 seconds, at 5 lbs. (2.3kg) tension
MB6M
PDF/DataSheet Download
- Datasheet: MB6M
- File Size: 38580 KB
- Manufacturer: MCC [Micro Commercial Components]
- Click here to Download
- ·MB6010
- MITEL [Mitel Networks Corporation]
- Product Summary Prototyping Kits
- 17573 KB
- ·MB60101BAN
- MURATA [Murata Manufacturing Co., Ltd.]
- HIGH FREQUENCY CERAMIC CAPACITORS
- 246165 KB
- ·MB60101BBN
- MURATA [Murata Manufacturing Co., Ltd.]
- HIGH FREQUENCY CERAMIC CAPACITORS
- 246165 KB
- ·MB60101CAN
- MURATA [Murata Manufacturing Co., Ltd.]
- HIGH FREQUENCY CERAMIC CAPACITORS
- 246165 KB
- ·MB60101CBN
- MURATA [Murata Manufacturing Co., Ltd.]
- HIGH FREQUENCY CERAMIC CAPACITORS
- 246165 KB
- ·MB60101DAN
- MURATA [Murata Manufacturing Co., Ltd.]
- HIGH FREQUENCY CERAMIC CAPACITORS
- 246165 KB
- ·MB60101DBN
- MURATA [Murata Manufacturing Co., Ltd.]
- HIGH FREQUENCY CERAMIC CAPACITORS
- 246165 KB
- ·MB60101FAN
- MURATA [Murata Manufacturing Co., Ltd.]
- HIGH FREQUENCY CERAMIC CAPACITORS
- 246165 KB
MB6M Relative Products

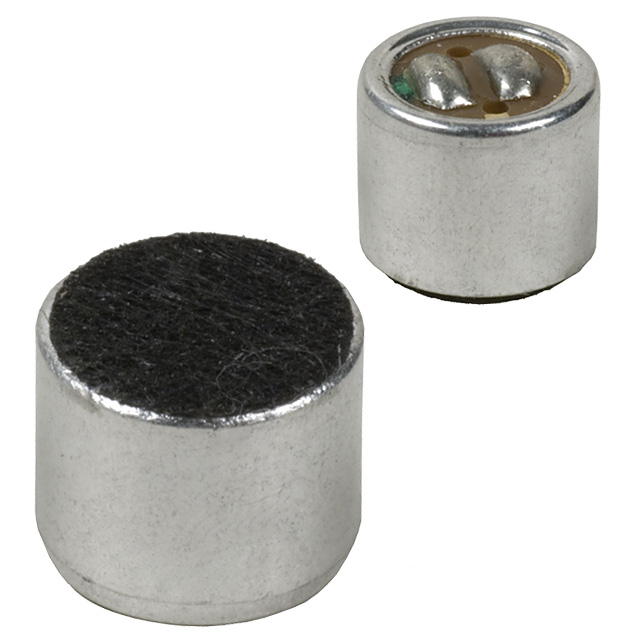

MB6052USZ-2
