Purchase MB81F641642D-102L, In-stock MB81F641642D-102L From SeekIC.
MFG:FUJITSU
Part Number: MB81F641642D-102L
MFG: FUJITSU
Description: The Fujitsu MB81F641642D is a CMOS Synchronous Dynamic Random Access Memory (SDRAM) containing 67,108,...
- Table of contents:
MB81F641642D-102L
-
Suppliers
DataSheet
General Description
MB81F641642D-102L General Description
The Fujitsu MB81F641642D is a CMOS Synchronous Dynamic Random Access Memory (SDRAM) containing 67,108,864 memory cells accessible in a 16-bit format. The MB81F641642D features a fully synchronousoperation referenced to a positive edge clock whereby all operations are synchronized at a clock input which enables high performance and simple user interface coexistence. The MB81F641642D SDRAM is designed to reduce the complexity of using a standard dynamic RAM (DRAM) which requires many control signal timing constraints, and may improve data bandwidth of memory as much as 5 times more than a conventional DRAM.
The MB81F641642D is ideally suited for workstations, personal computers, laser printers, high resolution graphic adapters/accelerators and other applications where an extremely large memory and bandwidth are required and where a simple interface is needed.
MB81F641642D-102L Maximum Ratings
| Parameter |
Symbol |
Value |
Unit |
| Voltage of VCC Supply Relative to VSS Voltage at Any Pin Relative to VSS Short Circuit Output Current Power Dissipation Storage Temperature |
VCC, VCCQ VIN, VOUT IOUT PD TSTG |
0.5 to +4.6 0.5 to +4.6 50 to +50 1.3 55 to +125 |
V V mA W °C |
MB81F641642D-102L Features
• Single +3.3 V Supply ±0.3 V tolerance
• LVTTL compatible I/O interface
• 4 K refresh cycles every 64 ms
• Four bank operation
• Burst read/write operation and burst read/single write operation capability
• Programmable burst type, burst length, and CAS latency
• Auto-and Self-refresh (every 15.6 ms)
• CKE power down mode
• Output Enable and Input Data Mask
• LVTTL compatible I/O interface
• 4 K refresh cycles every 64 ms
• Four bank operation
• Burst read/write operation and burst read/single write operation capability
• Programmable burst type, burst length, and CAS latency
• Auto-and Self-refresh (every 15.6 ms)
• CKE power down mode
• Output Enable and Input Data Mask

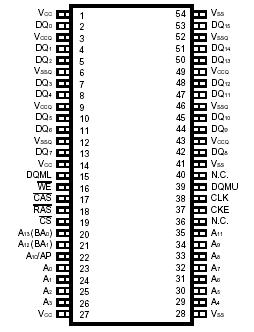

MB81F641642D-102L Connection Diagram
MB81F641642D-102L
PDF/DataSheet Download
- Datasheet: MB81F641642D-102L
- File Size: 880211 KB
- Manufacturer: Fujitsu
- Click here to Download
