MB84SD23280FA Maximum Ratings
MB84SD23280FA Features
• Power supply voltage of 1.65 V to 1.95 V
• High performance
70 ns maximum access time (Flash)
70 ns maximum access time (SRAM)
• Operating Temperature
30 °C to +85 °C
• Package 73-ball FBGA
` FLASH MEMORY
• 0.17 mm process technology
• Simultaneous Read/Write operation (Dual Bank)
• FlexBankTM *1
Bank A: 16M bit (16KB * 4 and 64KB *31)
Bank B: 16M bit (64KB *32)
Bank C: 16M bit (64KB * 32)
Bank D: 16M bit (16KB *4 and 64KB *31)
• Minimum 100,000 program/erase cycles
• Sector Erase Architecture
Four 8K words, a hundred twenty-eight 32K words sectors.
Any combination of sectors can be concurrently erased. Also supports full chip erase.
• WP Input Pin
At VIL, allows protection of all sectors, regardless of sector protection/unprotection status
At VIH, allows removal of sector protection
• Embedded EraseTM *2 Algorithms
Automatically preprograms and erases the chip or any sector
• Embedded ProgramTM *2 Algorithms
Automatically writes and verifies data at specified address
•Data Polling and Toggle Bit feature for detection of program or erase cycle completion
• Automatic sleep mode
When address remain stable, the device automatically switches itself to low power mode
• Low VCC write inhibit
• Erase Suspend/Resume
Suspends the erase operation to allow a read data and/or program in another sector within the same device
resumes the erase operation
• Sector Protection
Software command sector locking
• Please Refer to "MBM29BS64LF" Datasheet in Detailed Function
`SRAM
• Power Dissipation
Operating : 50 mA Max
Standby :15 A Max
• Power Down Features using CE1s and CE2s
• Data Retention Supply Voltage: 1.0 V to 1.95 V
• CE1s and CE2s Chip Select
• Byte Data Control: LB(DQ7 to DQ0), UB (DQ15 to DQ8)
*1: FlexBankTM is a trademark of Fujitsu Limited, Japan.
*2: Embedded EraseTM and Embedded ProgramTM are trademarks of Advanced Micro Devices, Inc. SHDN

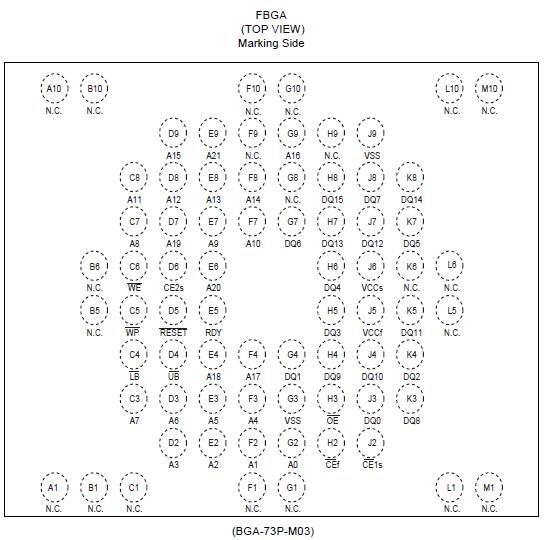

MB84SD23280FA Connection Diagram
