Purchase MB85R1002, In-stock MB85R1002 From SeekIC.
Part Number: MB85R1002
Description: The MB85R1002 is an FRAM (Ferroelectric Random Access Memory) chip in a configuration of 65,536 words ...
- Table of contents:
MB85R1002
-
Suppliers
DataSheet
General Description
MB85R1002 General Description
The MB85R1002 is an FRAM (Ferroelectric Random Access Memory) chip in a configuration of 65,536 words x 16 bits, using the ferroelectric process and silicon gate CMOS process technologies for forming the nonvolatile memory cells.
Unlike SRAM, MB85R1002 is able to retain data without back-up battery.
The memory cells used for the MB85R1002 has improved at least 1010 times of read/write access, significantly outperforming FLASH memory and E2PROM in endurance.
The MB85R1002 uses a pseudo - SRAM interface compatible with conventional asynchronous SRAM.
MB85R1002 Maximum Ratings
| Parameter | Symbol | Rating | Unit | |
| Min. | Max. | |||
| Supply Voltage | VCC | -0.5 | +4.0 | V |
| Input Voltage | VIN | -0.5 | VCC + 0.5 | V |
| Output Voltage | VOUT | -0.5 | VCC + 0.5 | V |
| Ambient Operating Temperature | TA | -20 | +85 | °C |
| Storage Temperature | Tstg | -40 | +125 | °C |
MB85R1002 Features
• Bit configuration : 65,536 words x 16 bits
• Read/write endurance : 1010 times
• Operating power supply voltage : 3.0 V to 3.6 V
• Operating temperature range : -20 °C to +85 °C
• LB and UB data byte control
• 48-pin, TSOP(1) plastic package
• Read/write endurance : 1010 times
• Operating power supply voltage : 3.0 V to 3.6 V
• Operating temperature range : -20 °C to +85 °C
• LB and UB data byte control
• 48-pin, TSOP(1) plastic package

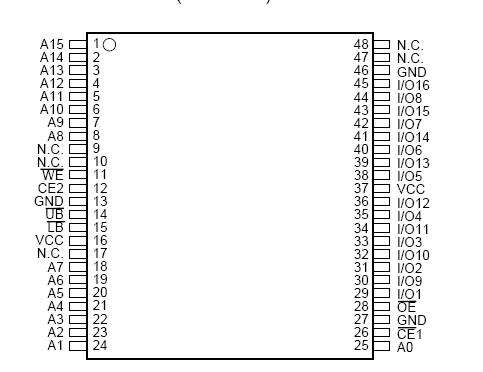

MB85R1002 Connection Diagram
MB85R1002
PDF/DataSheet Download
- Datasheet: MB85R1002
- File Size: 161379 KB
- Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
- Click here to Download
