Purchase MB85R256A, In-stock MB85R256A From SeekIC.
Part Number: MB85R256A
Description: The MB85R256/256A is an FRAM (Ferroelectric Random Access Memory) chip in a configuration of 32,768 wo...
- Table of contents:
MB85R256A
-
Suppliers
DataSheet
General Description
MB85R256A General Description
The MB85R256/256A is an FRAM (Ferroelectric Random Access Memory) chip in a configuration of 32,768 words x 8 bits, using the ferroelectric process and silicon gate CMOS process technologies for forming the nonvolatile memory cells.
Unlike SRAM MB85R256/256A is able to retain data without back-up battery.
The memory cells used for the MB85R256/256A has inproved at least 1010 times of read/write access per bit, significantly outperforming FLASH memory and EEPROM in durability.
The MB85R256/256A uses a pseudo - SRAM interface compatible with conventional asynchronous SRAM.
MB85R256A Maximum Ratings
|
Parameter |
Conditions |
Rating |
Units | |
|
Min |
Max | |||
| Power supply voltage |
VCC |
0.5 |
+4.6 |
V |
| Input voltage |
VIN |
0.5 |
Vcc+0.5 |
V |
| Output voltage |
VOUT |
0.5 |
Vcc+0.5 |
V |
| Operating temperature |
TA |
40 |
+85 |
°C |
| Storage temperature |
Tstg |
40 |
+85 |
°C |
MB85R256A Features
• Bit configuration: 32,768 words x 8 bits
• Read/write durability: 1010 times/bit (Min)
• Peripheral circuit CMOS construction
• Operating power supply voltage: 3.0 V to 3.6 V
• Operating temperature range: -40 °C to +85 °C
• 28-pin, SOP flat package
• Read/write durability: 1010 times/bit (Min)
• Peripheral circuit CMOS construction
• Operating power supply voltage: 3.0 V to 3.6 V
• Operating temperature range: -40 °C to +85 °C
• 28-pin, SOP flat package

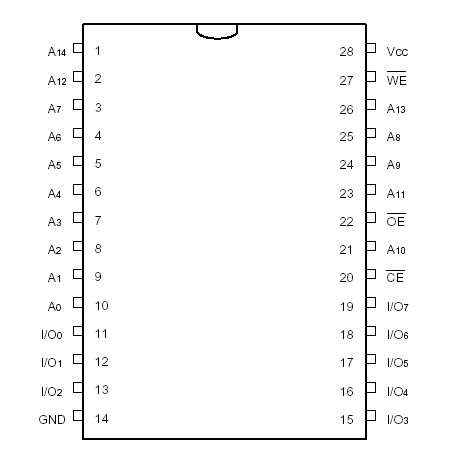

MB85R256A Connection Diagram
MB85R256A
PDF/DataSheet Download
- Datasheet: MB85R256A
- File Size: 141926 KB
- Manufacturer: Fujitsu
- Click here to Download
