Part Number: MB86437



MFG: FUJITSU

Package Cooled: SOP

D/C: 03+

Description: The FUJITSU MB86437 is an AIU (audio interface unit) LSI for +3 V single-power source digital telephon...


Urgent Purchase

MB86437 General Description


The FUJITSU MB86437 is an AIU (audio interface unit) LSI for +3 V single-power source digital telephone devices, manufactured using CMOS process technology. The codec transmission filter characteristics meet G.712 standards, and can handle input and output in A-Law, m-Law and linear conversion modes. The MB86437 also contains the necessary DTMF, microphone and receiver amps for telephone devices.

MB86437 Maximum Ratings

Parameter Symbol Rating Unit
Min. Max.
Power supply voltage VS 0.3 6.0 V
Analog input voltage VAIN 0.3 +VS + 0.3 V
Digital input voltage VDIN 0.3 +VS + 0.3 V
Storage temperature Vstg 55 +125 °C
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.

MB86437 Features

• +3 V single power supply
• Low power consumption: muting settings for each operating mode
  Normal operation : 5.0 mA TYP
  Standby mode : 0.5 mA TYP
• On-chip codec filter meets G.712 standards
• Selection of codec companding law (A-law, m-law, 14 bit linear)
• On-chip low-noise microphone amp (2-channel) (0 to 35 dB amplification)
• On-chip receiver speaker amps (32 W BTL type: 10 mW MIN)
• On-chip earphone speaker amps (32 W single type: 5 mW MIN)

MB86437 Connection Diagram

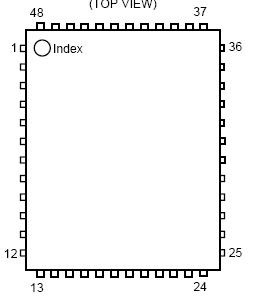

MB86437 Connection Diagram

MB86437 datasheet

MB86437
PDF/DataSheet Download

  • Datasheet: MB86437
  • File Size: 675852 KB
  • Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
  • Click here to Download
