Part Number: MB89160A
Description: The MB89160 series is a line of the general-purpose, single-chip microcontrollers. In addition to a co...
- Table of contents:
MB89160A
-
Suppliers
DataSheet
General Description
MB89160A General Description
The MB89160 series is a line of the general-purpose, single-chip microcontrollers. In addition to a compact instruction set, the microcontrollers contain a variety of peripheral functions such as an LCD controller/driver, an A/D converter, timers, a serial interface, PWM timers, and external interrupts.
MB89160A Maximum Ratings
| Parameter | Symbol | Value | Unit | Remarks | |
| Min. | Max. | ||||
| Power supply voltage | VCC | VSS 0.3 | VSS + 7.0 | V | |
| AVCC | VSS 0.3 | VSS + 7.0 | V | AVCC must not exceed VCC + 0.3 V. | |
| AVR | VSS 0.3 | VSS + 7.0 | V | AVR must not exceed AVCC + 0.3 V. | |
| LCD power supply voltage | V0 to V3 | VSS 0.3 | VSS + 7.0 | V | V0 to V3 on the product without booster must not exceed VCC. |
| Input voltage | VI1 | VSS 0.3 | VCC + 0.3 | V | VI1 must not exceed VSS + 7.0 V. All pins except P20 to P27 without a pull-up resistor |
| VI2 | VSS 0.3 | VSS + 7.0 | V | P20 to P27 without a pull-up resistor | |
| Output voltage | VO1 | VSS 0.3 | VCC + 0.3 | V | VO1 must not exceed VSS + 7.0 V. All pins except P20 to P27, P32, P33, P40 to P47, and P60 to P67 without a pull-up resistor |
| VO2 | VSS 0.3 | VSS + 7.0 | V | P20 to P27, P32, P33, P40 to P47, and P60 to P67 without a pull-up resistor | |
MB89160A Features
• F2MC-8L family CPU core
• Dual-clock control system
• Maximum memory size: 16-Kbyte ROM, 512-byte RAM (max.)
• Minimum execution time: 0.95 ms/4.2 MHz
• I/O ports: max. 54 channels
• 21-bit time-base counter
• 8/16-bit timer/counter: 2 or 1 channels
• 8-bit serial I/O: 1 channel
• External interrupts (wake-up function): Four channels with edge selection plus eight level-interrupt channels
• 8-bit A/D converter: 8 channels
• 8-bit PWM timers: 2 channels
• Watch prescaler (15 bits)
• LCD controller/driver: 24 segments ´ 4 commons (max. 96 pixels)
• LCD driving reference voltage generator and booster (option)
• Remote control transmission output
• Buzzer output
• Power-on reset function (option)
• Low-power consumption modes (stop, sleep, and watch mode)
• CMOS technology
• Dual-clock control system
• Maximum memory size: 16-Kbyte ROM, 512-byte RAM (max.)
• Minimum execution time: 0.95 ms/4.2 MHz
• I/O ports: max. 54 channels
• 21-bit time-base counter
• 8/16-bit timer/counter: 2 or 1 channels
• 8-bit serial I/O: 1 channel
• External interrupts (wake-up function): Four channels with edge selection plus eight level-interrupt channels
• 8-bit A/D converter: 8 channels
• 8-bit PWM timers: 2 channels
• Watch prescaler (15 bits)
• LCD controller/driver: 24 segments ´ 4 commons (max. 96 pixels)
• LCD driving reference voltage generator and booster (option)
• Remote control transmission output
• Buzzer output
• Power-on reset function (option)
• Low-power consumption modes (stop, sleep, and watch mode)
• CMOS technology

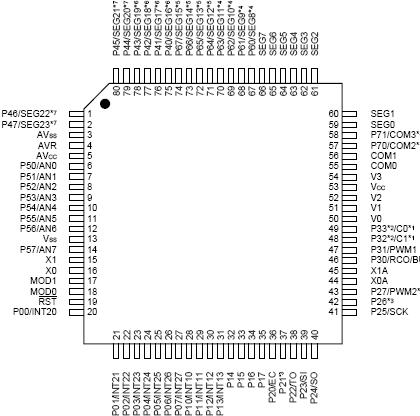

MB89160A Connection Diagram
