Purchase MB89165L, In-stock MB89165L From SeekIC.
MFG:FUJITSU D/C:04+
Part Number: MB89165L
MFG: FUJITSU
D/C: 04+
Description: The MB89160L series is a line of the general-purpose, single-chip microcontrollers. In addition to a c...
- Table of contents:
MB89165L
-
Suppliers
DataSheet
General Description
MB89165L General Description
The MB89160L series is a line of the general-purpose, single-chip microcontrollers. In addition to a compact instruction set, the microcontrollers contain a variety of peripheral functions such as an LCD controller/driver, an A/D converter, timers, a serial interface, PWM timers, and external interrupts.
MB89165L Features
• F2MC-8L family CPU core
• Dual-clock control system
• Maximum memory size: 16-Kbyte ROM, 512-byte RAM (Max)
• Minimum execution time: 0.95 ms/4.2 MHz
• I/O ports: Max 54 channels
• 21-bit time-base timer
• 8/16-bit timer/counter: 2 or 1 channels
• 8-bit serial I/O: 1 channel
• External interrupts (wake-up function): Four channels with edge detection plus eight level-interrupt channels
• 8-bit A/D converter: 8 channels
• 8-bit PWM timers: 2 channels
• Watch prescaler (15 bits)
• LCD controller/driver: 24 segments ´ 4 commons (Max 96 pixels)
• Remote control transmission output
• Buzzer output
• Power-on reset function (option)
• Low-power consumption modes (stop, sleep, and watch mode)
• CMOS technology
• Dual-clock control system
• Maximum memory size: 16-Kbyte ROM, 512-byte RAM (Max)
• Minimum execution time: 0.95 ms/4.2 MHz
• I/O ports: Max 54 channels
• 21-bit time-base timer
• 8/16-bit timer/counter: 2 or 1 channels
• 8-bit serial I/O: 1 channel
• External interrupts (wake-up function): Four channels with edge detection plus eight level-interrupt channels
• 8-bit A/D converter: 8 channels
• 8-bit PWM timers: 2 channels
• Watch prescaler (15 bits)
• LCD controller/driver: 24 segments ´ 4 commons (Max 96 pixels)
• Remote control transmission output
• Buzzer output
• Power-on reset function (option)
• Low-power consumption modes (stop, sleep, and watch mode)
• CMOS technology

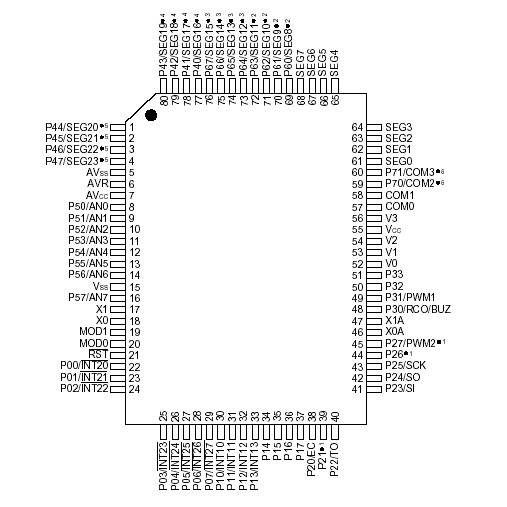

MB89165L Connection Diagram
MB89165L
PDF/DataSheet Download
- Datasheet: MB89165L
- File Size: 832207 KB
- Manufacturer: Fujitsu
- Click here to Download
