General Description
MB89537HC General Description
The MB89530H series is a one-chip microcontroller featuring the F2MC-8L core supporting low-voltage and highspeed operation. Built-in peripheral functions include timers, serial interface, A/D converter, and external interrupt. This product is an ideal general-purpose one-chip microcontroller for a wide variety of applications from household to industrial equipment, as well as use in portable devices.
MB89537HC Features
• Wide range of package options
· Two types of QFP packages (1 mm pitch, 0.65 mm pitch)
· LQFP package (0.5 mm pitch)
· SH-DIP package
• Low voltage, high-speed operating capability
· Minimum instruction execution time 0.32 ms (at base oscillator 12.5 MHz)
• F2MC-8L CPU Core
· Instruction set optimized for controller operation
· Multiplication/division instructions
· 16-bit calculation
· Branching instructions with bit testing
· Bit operation instructions, etc.
• Five timer systems
· 8-bit PWM timer with 2 channels (usable as either interval timer of PWM timer)
· Pulse width count timer (supports continuous measurement or remote control receiving applications)
· 16-bit timer counter
· 21-bit time base timer
· Clock prescaler (17-bit)
· UART
· Synchronous or asynchronous operation, switchable
• 2 serial interfaces (Serial I/O)
· Selection of transfer direction (specify MSB first or LSB first) for communication with a variety of devices
• 10-bit A/D converter (8 channels)
· External clock input and time base timer output for startup support
• Pulse generators (PPG) with 2-program capability
· 6-bit PPG with selection of pulse width and pulse period
· 12-bit PPG (2 channels) with selection of pulse width and pulse period
• I2C interface circuits
• External interrupt 1 (4 channels)
· 4 independent inputs, release enabled from standby mode (includes edge detection function)
• External interrupt 2 (8 channels)
· 8 independent inputs, release enabled form standby mode (includes level edge detection function)
• Standby modes (low power consumption modes)
· Stop mode (oscillator stops, virtually no power consumed)
· Sleep mode (CPU stops, power consumption reduced to one-third)
· Sub clock mode
· Clock mode
• Watchdog timer reset
• I/O ports
· Maximum 53 ports
· 38 general-purpose I/O ports (CMOS)
· 2 general-purpose I/O ports (N-ch open drain)
· 8 general-purpose output ports (N-ch open drain)
· 5 general-purpose input ports (CMOS)
· Two types of QFP packages (1 mm pitch, 0.65 mm pitch)
· LQFP package (0.5 mm pitch)
· SH-DIP package
• Low voltage, high-speed operating capability
· Minimum instruction execution time 0.32 ms (at base oscillator 12.5 MHz)
• F2MC-8L CPU Core
· Instruction set optimized for controller operation
· Multiplication/division instructions
· 16-bit calculation
· Branching instructions with bit testing
· Bit operation instructions, etc.
• Five timer systems
· 8-bit PWM timer with 2 channels (usable as either interval timer of PWM timer)
· Pulse width count timer (supports continuous measurement or remote control receiving applications)
· 16-bit timer counter
· 21-bit time base timer
· Clock prescaler (17-bit)
· UART
· Synchronous or asynchronous operation, switchable
• 2 serial interfaces (Serial I/O)
· Selection of transfer direction (specify MSB first or LSB first) for communication with a variety of devices
• 10-bit A/D converter (8 channels)
· External clock input and time base timer output for startup support
• Pulse generators (PPG) with 2-program capability
· 6-bit PPG with selection of pulse width and pulse period
· 12-bit PPG (2 channels) with selection of pulse width and pulse period
• I2C interface circuits
• External interrupt 1 (4 channels)
· 4 independent inputs, release enabled from standby mode (includes edge detection function)
• External interrupt 2 (8 channels)
· 8 independent inputs, release enabled form standby mode (includes level edge detection function)
• Standby modes (low power consumption modes)
· Stop mode (oscillator stops, virtually no power consumed)
· Sleep mode (CPU stops, power consumption reduced to one-third)
· Sub clock mode
· Clock mode
• Watchdog timer reset
• I/O ports
· Maximum 53 ports
· 38 general-purpose I/O ports (CMOS)
· 2 general-purpose I/O ports (N-ch open drain)
· 8 general-purpose output ports (N-ch open drain)
· 5 general-purpose input ports (CMOS)

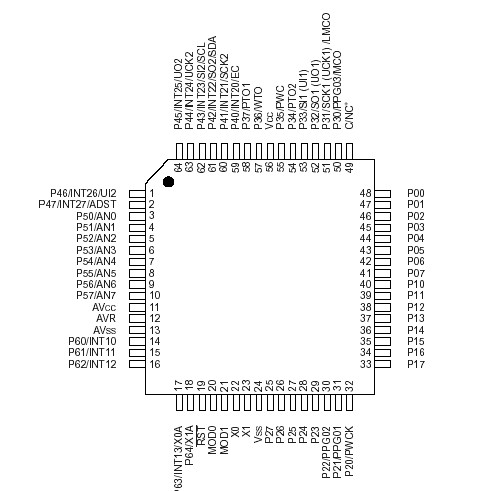

MB89537HC Connection Diagram
