MB89567H
-
Suppliers
DataSheet
General Description
MB89567H General Description
The MB89560H series has been developed as a general-purpose version of the F2MC*-8L family consisting of proprietary 8-bit, single-chip microcontrollers.
In addition to a compact instruction set, the microcontroller contains a variety of peripheral functions such as I2C interface, timers, 2 ch PWM timers, 8/16-bit timer, 21bit timebase timer, 8 bit PWC timer , 17-bit Watch prescaler, Watch-dog timer, High speed UART, 8-bit SIO, UART/SIO, LCD controller/driver (optional booster), Two type Programmable Pulse Generators (PPG), an A/D converter, and external interrupt.
MB89567H Features
• F2MC-8L family CPU core
• Low-voltage operation (when an A/D converter is not used)
• Low current consumption (applicable to the dual-clock system)
• Minimum execution time: 0.32 ms at 12.5 MHz
• I2C interface circuit
• LCD controller/driver : 24 segments x 4 commons (max. 96 pixels, duty LCD mode and Static LCD mode)
• LCD booster function (option)
• Wild register (max. 6 different address locations)
• 10-bit A/D converter: 8 channels
• Low-voltage operation (when an A/D converter is not used)
• Low current consumption (applicable to the dual-clock system)
• Minimum execution time: 0.32 ms at 12.5 MHz
• I2C interface circuit
• LCD controller/driver : 24 segments x 4 commons (max. 96 pixels, duty LCD mode and Static LCD mode)
• LCD booster function (option)
• Wild register (max. 6 different address locations)
• 10-bit A/D converter: 8 channels

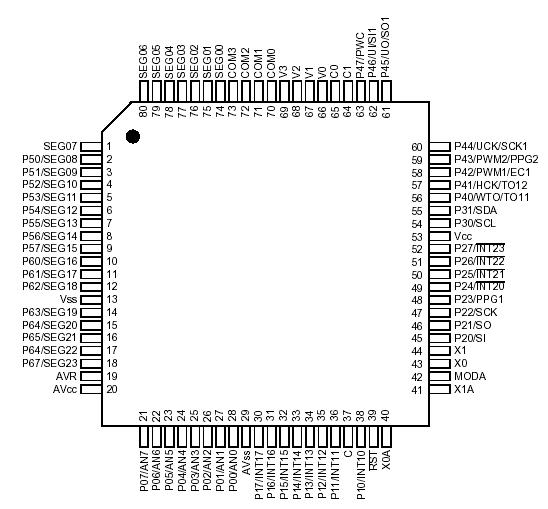

MB89567H Connection Diagram
MB89567HPF
PDF/DataSheet Download
- Datasheet: MB89567HPF
- File Size: 1009660 KB
- Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
- Click here to Download
