MB89637R
-
Suppliers
DataSheet
General Description
MB89637R Maximum Ratings
| Parameter | Symbol | Value | Unit | Remarks | |
| Min. | Max. | ||||
| Power supply voltage | VCC | VSS 0.3 | VSS + 7.0 | V | * |
| AVCC | VSS 0.3 | VSS + 7.0 | V | * | |
| A/D converter reference input voltage | AVR | VSS 0.3 | VSS + 7.0 | V |
AVR must not exceed |
| Input voltage | VI | VSS 0.3 | VCC + 0.3 | V | Except P50 to P53 |
| VI2 | VSS 0.3 | VSS + 7.0 | V | P50 to P53 | |
| Output voltage | VO | VSS 0.3 | VCC + 0.3 | V | Except P50 to P53 |
| VO2 | VSS 0.3 | VSS + 7.0 | V | P50 to P53 | |
| "L" level maximum output current | IOL | 20 | mA | ||
| "L" level average output current | IOLAV | 4 | mA | Average value (operating current ` operating rate) | |
| "L" level total maximum output current | IOL | 100 | mA | ||
| "L" level total average output current | IOLAV | 40 | mA | Average value (operating current ` operating rate) | |
| "H" level maximum output current | IOL | -20 | mA | ||
| "H" level average output current | IOLAV | -4 | mA | Average value (operating current ` operating rate) | |
| "H" level total maximum output current | IOL | -50 | mA | ||
| "H" level total average output current | IOLAV | -20 | mA | Average value (operating current ` operating rate) | |
| Power consumption | PD | 500 | mW | ||
| Operating temperature | TA | 40 | +85 | C | |
| Storage temperature | Tstg | 55 | +150 | C | |
MB89637R Features
* High-speed operating capability at low voltage
* Minimum execution time: 0.4 m s@3.5 V, 0.8 m s@2.7 V
* F2MC-8L family CPU core
* Instruction set optimized for controllers:
Multiplication and division instructions
16-bit arithmetic operations
Test and branch instructions
Bit manipulation instructions, etc.
* Five types of timers
8-bit PWM timer: 2 channels (Also usable as a reload timer)
8-bit pulse-width count timer (Continuous measurement capable, applicable to remote control, etc.)
16-bit timer/counter
21-bit timebase timer
* UART
CLK-synchronous/CLK-asynchronous data transfer capable (6, 7, and 8 bits)
* Serial interface
Switchable transfer direction to allows communication with various equipment.
* 10-bit A/D converter
Start by an external input capable
* External interrupt: 4 channels
Four channels are independent and capable of wake-up from low-power consumption modes (with an edge detection function).
* Low-power consumption modes
Stop mode (Oscillation stops to minimize the current consumption.)
Sleep mode (The CPU stops to reduce the current consumption to approx. 1/3 of normal.)
Subclock mode
Watch mode
* Bus interface function
With hold and ready function

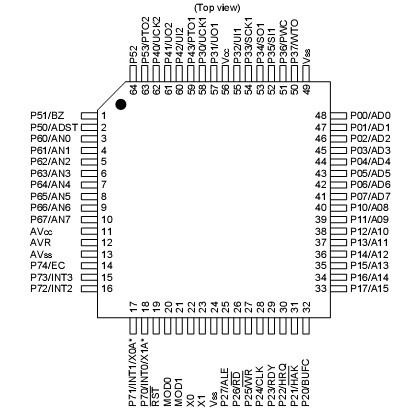

MB89637R Connection Diagram
MB89637R
PDF/DataSheet Download
- Datasheet: MB89637R
- File Size: 885860 KB
- Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
- Click here to Download
