General Description
MB89670AR Maximum Ratings
|
Parameter |
Symbol |
Min. |
Max. |
Unit |
Remarks |
| Power supply voltage |
VCC |
VSS 0.3 |
VSS + 7.0 |
V |
* |
|
AVCC |
VSS 0.3 |
VCC + 0.3 |
V |
* | |
| A/D converter reference input voltage |
AVR |
VSS 0.3 |
VCC + 0.3 |
V |
AVR must not exceed "AVCC + 0.3 V". |
| Input voltage |
VI |
VSS 0.3 |
VCC + 0.3 |
V |
|
| Output voltage |
VO1 |
VSS 0.3 |
VCC + 0.3 |
V |
Except P80 to P85 |
|
VO2 |
VSS 0.3 |
VSS + 7.0 |
V |
P80 to P85 | |
| "L" level maximum output current |
IOL |
- |
20 |
mA |
|
| "L" level average output current |
IOLAV1 |
- |
4 |
mA |
Average value (operating current*operating rate) |
|
IOLAV2 |
- |
8 |
mA |
Average value (operating current*operating rate) P80 to P85 | |
| "L" level total maximum output current |
IOL |
- |
100 |
mA |
|
| "L" level total average output current |
IOLAV |
- |
40 |
mA |
Average value (operating current*operating rate) |
| "H" level maximum output current |
IOH |
- |
-20 |
mA |
|
| "H" level average output current |
IOHAV |
- |
-4 |
mA |
Average value (operating current*operating rate) |
| "H" level total maximum output current |
IOH |
- |
-50 |
mA |
|
| "H" level total average output current |
IOHAV |
- |
-20 |
mA |
Average value (operating current*operating rate) |
| Power consumption |
PD |
- |
300 |
mW |
|
| Operating temperature |
TA |
- |
+85 |
°C |
|
| Storage temperature |
Tstg |
- |
+150 |
°C |
Take care that AVR does not exceed "AVCC + 0.3 V" and AVCC does not exceed VCC, such as when power is turned
on.
MB89670AR Features
• F2MC-8L family CPU core Instruction set optimized for controllers
Multiplication and division instructions
16-bit arithmetic operations
Test and branch instructions
Bit manipulation instructions, etc
• High-speed processing at low voltage
• Minimum execution time: 0.4 s@3.5 V, 0.8 s@2.7 V, 2.0 s@2.2 V
• I/O ports: max. 69 channels
Multiplication and division instructions
16-bit arithmetic operations
Test and branch instructions
Bit manipulation instructions, etc
• High-speed processing at low voltage
• Minimum execution time: 0.4 s@3.5 V, 0.8 s@2.7 V, 2.0 s@2.2 V
• I/O ports: max. 69 channels

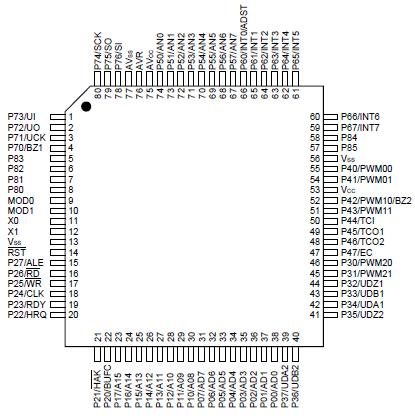

MB89670AR Connection Diagram
