MB89913

Features: • Minimum execution time: 0.50 ms/8.0 MHz oscillation• Interrupt processing time: 4.50 ms/8.0 MHz oscillation• F2MC-8L family CPU core• Dual-clock control system• High-voltage ports (built-in a pull-down resistor capable) 8 ports for large current 10 ports f...

product image

MB89913 Picture
See larger image
SeekIC No. : 004413727 Detail

MB89913: Features: • Minimum execution time: 0.50 ms/8.0 MHz oscillation• Interrupt processing time: 4.50 ms/8.0 MHz oscillation• F2MC-8L family CPU core• Dual-clock control system...

MB89913 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB89913
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/4/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Minimum execution time: 0.50 ms/8.0 MHz oscillation
• Interrupt processing time: 4.50 ms/8.0 MHz oscillation
• F2MC-8L family CPU core
• Dual-clock control system
• High-voltage ports (built-in a pull-down resistor capable)
  8 ports for large current
  10 ports for small current
• 8-bit PWM timer: 1 channel
• 16-bit timer/counter: 1 channel
• 21-bit timebase timer
• 8-bit serial I/O: 1 channel
• 8-bit A/D converter: 8 channels
• External interrupt
  Edge detection function
  Two channels, including one of which voltage can be applied from 0.3 to +7.0 V
• Low-voltage detection reset (excluding the MB89PV910)
• Low-power consumption modes (subclock mode, watch mode, sleep mode, and stop mode)
• Reset output and power-on reset function
• Watch prescaler



Pinout

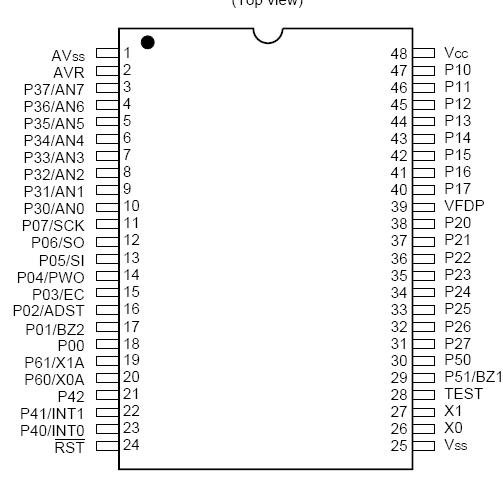

Connection Diagram


Specifications

Parameter Symbol Value Unit Remarks
Min. Max.
Power supply voltage VCC
AVCC		 VSS 0.3 VSS + 7.0 V AVR £ VCC + 0.3*1
VPP -0.6
VFDP VSS 40 VSS 0.3
Input voltage V11 VSS 0.3 VSS + 3.0 V Except P41*2
V12 VSS 0.3 7
Output voltage V11 VSS 0.3 VSS + 0.3 V Except P10 to P17,
P20 to P27, P50, P51*2
V12 VSS 40 VSS 0.3
"L" level maximum output current IOL - 36 mA P10 to P17, P20 to P27
P50, P51
"L" level average output current IOLAV -- 20 mA Average value (operating
current ´ operating rate)
"L" level maximum output current IOL - 10
"L" level total average output
current		 SIOLAV - 4 mA P10 to P17
Average value (operating
current ´ operating rate)
"H" level maximum output current IOH - -120 mA
"H" level average output current IOHAV --- -90 mA Average value (operating
current ´ operating rate)
"H" level total maximum output
current		 SIOH - -12 mA P00 to P07, P34 to P37, P40
-20 P20 to P27, P50, P51
-36 P10 to P17



Description

The MB89913 series has been developed as a general-purpose version of the F2MC*-8L family consisting of proprietary 8-bit, single-chip microcontrollers.

In addition to a compact instruction set, the MB89913 contain a variety of peripheral functions such as dual-clock control system, five operating speed control stages, timers, a serial interface, an A/D converter, a buzzer output, a low-voltage detection reset, high-voltage driver, a watch prescaler, and external interrupts. The MB89910 series is applicable to a wide range of applications from consumer products to industrial equipments.
