Purchase MB89P195, In-stock MB89P195 From SeekIC.
MFG:FUJITSU
- Table of contents:
MB89P195
-
Suppliers
DataSheet
General Description
MB89P195 Features
• Minimum execution time: 0.95 ms at 4.2 MHz (VCC = 2.7 V)
• F2MC-8L family CPU core
• Two timers
8/16-bit timer/counter
20-bit timebase counter
• Serial interface
8-bit synchronous serial (Selectable transfer direction allows communication with various equipment.
• External interrupts
Edge detection (Selectable edge): 3 channels
Low-level interrupt (Wake-up function): 8 channels
• A/D converter (MB89190A series only)
8-bit successive approximation type: 8 channels
• Built-in remote-control transmitting frequency generator
• Low-power consumption modes
Stop mode (Almost no current consumption occurs because oscillation stops.)
Sleep mode (The current consumption is reduced about 1/3 of that during normal operation because the CPU stops.)
• Packages
SOP-28, SH-DIP-28, and DIP-28
• F2MC-8L family CPU core
• Two timers
8/16-bit timer/counter
20-bit timebase counter
• Serial interface
8-bit synchronous serial (Selectable transfer direction allows communication with various equipment.
• External interrupts
Edge detection (Selectable edge): 3 channels
Low-level interrupt (Wake-up function): 8 channels
• A/D converter (MB89190A series only)
8-bit successive approximation type: 8 channels
• Built-in remote-control transmitting frequency generator
• Low-power consumption modes
Stop mode (Almost no current consumption occurs because oscillation stops.)
Sleep mode (The current consumption is reduced about 1/3 of that during normal operation because the CPU stops.)
• Packages
SOP-28, SH-DIP-28, and DIP-28

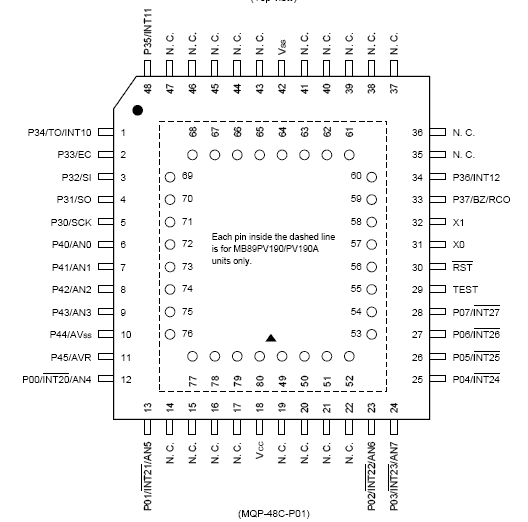

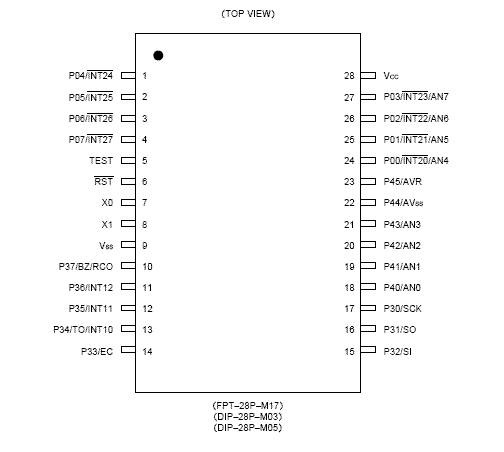

MB89P195 Connection Diagram
MB89P195
