MFG:QFP-100 Package Cooled:FUJ D/C:2004+
MFG: QFP-100
Package Cooled: FUJ
D/C: 2004+
Description: The MB89650AR series has been developed as a general-purpose version of the F2MC*-8L family...
The MB89650AR series has been developed as a general-purpose version of the F2MC*-8L family consisting of proprietary 8-bit, single-chip microcontrollers.
In addition to a compact instruction set, the microcontrollers contain a variety of peripheral functions such as dual-clock control system, five operating speed control stages, timers, PWM timers, a serial interface, an A/D converter, external interrupts, an LCD controller/driver, and a watch prescaler.
*: F2MC stands for FUJITSU Flexible Microcontroller.

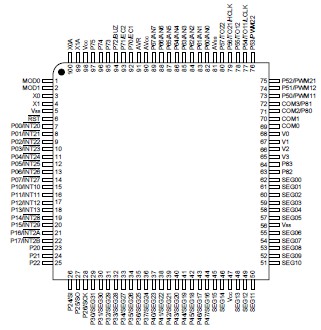

| Parameter | Symbol | Value | Unit | Remarks | |
| Min. | Max. | ||||
| Power supply voltage |
VCC AVCC |
VSS 0.3 | VSS + 7.0 | V | *1 |
| A/D converter reference input voltage | AVR | VSS 0.3 | VSS + 7.0 | V | |
| LCD power supply voltage | V0 to V3 | VSS 0.3 | VSS + 7.0 | V | V0 to V3 must not exceed VCC. |
| Input voltage | VI | VSS 0.3 | VSS + 4.0 | V | Except P70 to P75*2 |
|
VI2 |
VSS 0.3 |
VSS + 7.0 |
V |
P70 to P75 | |
| Output voltage | VO | VSS 0.3 | VSS + 3.0 | V | Except P70 to P75*2 |
|
VO2 |
VSS 0.3 |
VSS + 7.0 |
V |
P70 to P75 | |
| "L" level maximum output current |
IOL | -- | 20 | mA | |
| "L" level average output current | IOLAV | - | 4 | mA | Average value (operating current ´ operating rate) |
| "L" level total maximum output current |
IOL | -- | 100 | mA | |
| "L" level total average output current |
IOLAV | -- | 40 | mA | Average value (operating current ´ operating rate) |
| "H" level maximum output current |
IOH | -- | 20 | mA | |
| "H" level average output current |
IOHAV | -- | 4 | mA | Average value (operating current ´ operating rate) |
| "H" level total maximum output current |
IOH | -- | 50 | mA | |
| "H" level total average output current |
IOHAV | - | 20 | mA | Average value (operating current ´ operating rate) |
| Power consumption | PD | - | 300 | mW | |
| Operating temperature | TA | - | +85 | °C | |
| Storage temperature | Tstg | - | +150 | °C | |
*1: Use AVCC and VCC set at the same voltage.Take care so that AVR does not exceed AVCC + 0.3 V and AVCC does not exceed VCC, such as when power is turned on.
*2: VI and VO must not exceed VCC + 0.3 V.
MB89P657A
PDF/DataSheet Download
The MB89P647 series has been developed as a general-purpose version of the F2MC*-8L family consisting of proprietary 8-bit, single-chip microcontrollers. In addition to a compact instruction set, the MB89P647 contain a variety of peripheral functions such as...
The MB89P637PF is designed as a general purpose version of the F2MC-8L family consistong of proprietary 8-bit, single-chip microcontrollers. In addition to a compact instruction set, the microcontrollers contain a veriety of peripheral functions such as dual...
The MB89P625 series has been developed as a general-purpose version of the F2MC*-8L family consisting of proprietary 8-bit, single-chip microcontrollers. In addition to the F2MC-8L CPU core which can operate at low voltage but at high speed, the microcontrol...
The MB89P485L is one member of the MB89P480 series that designed as the 8-bit proprietary microcontroller (because of it consists of proprietary 8-bit single-chip microcontrollers). It is designed suitable for LCD remote controller as well as in a wide range...
The MB89P215 series is a one-chip microcontroller that features a compact instruction set and contains a range of peripheral functions including timers, a serial interface, A/D converters and external interrupts.
