Part Number: MB89P817A
Description: The MB89810A series is a line of single-chip microcontrollers based on the F2MC*-8L CPU cor...
- Table of contents:
MB89P817A
-
Suppliers
DataSheet
General Description
MB89P817A General Description
The MB89810A series is a line of single-chip microcontrollers based on the F2MC*-8L CPU core which can operate at low voltage but at high speed. The microcontrollers contain peripheral function such as timer, serial interface, a UART, and an external interrupt. The MB89810A series is applicable to a wide range of applications from welfare products to industrial equipment, including portable devices.
*: F2MC stands for FUJITSU Flexible Microcontroller.
MB89P817A Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit |
Remarks | |
|
Min. |
Max. | ||||
| Power supply voltage |
VCC |
VSS 0.3 |
VSS + 7.0 |
V |
|
| Input voltage |
VI1 VI2 |
VSS 0.3 VSS 0.3 |
VCC + 0.3 VSS + 7.0 |
V V |
Except P50 to P54 P50 to P54 |
| Output voltage |
VO1 VO2 |
VSS 0.3 VSS 0.3 |
VCC + 0.3 VSS + 7.0 |
V V |
Except P50 to P54 P50 to P54 |
| "L" level maximum output current |
IOL |
- |
20 |
mA |
Peak value |
| "L" level average output current |
IOLAV1 IOLAV2 |
- - |
4 10 |
mA mA |
Average value except pins other than P50 to P54 |
| "L" level total maximum output current |
IOL |
- |
100 40 |
mA mA |
Average value for P50 to P54 |
| "L" level total average output current |
IOLAV |
- |
20 |
mA |
Peak value |
| "H" level maximum output current |
IOH |
- |
4 |
mA |
Average value |
| "H" level average output current |
IOHAV |
- |
mA |
Peak value | |
| "H" level total maximum output current |
IOH |
- |
50 |
mA |
Average value |
| "H" level total average output current |
IOHAV |
- |
20 |
mA |
Peak value |
| Power consumption |
PD |
- |
300 |
mW |
Average value |
| Operating temperature |
TA |
40 |
+85 |
°C |
|
| Storage temperature |
Tstg |
55 |
+150 |
°C |
|
Precautions: Permanent device damage may occur if the above "Absolute Maximum Ratings" are exceeded. Functional operation should be restricted to the conditions as detailed in the operational sections of this data sheet. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
MB89P817A Features
High speed processing at low voltageMinimum execution time: 0.8s/3.0 V, 1.33s/2.2 V
• F2MC-8L family CPU core
Instruction set optimized for controllers:Multiplication and division instructions
16-bit arithmetic operations
Test and branch instructions
Bit manipulation instructions, etc.
• Four types of timers
8-bit PWM timer: 2 channels (also serve as reload timers)
16-bit timer/counter
21-bit time-base timer
• Two serial interface
8-bit synchronous serial (Switchable transfer direction allows communication with various equipment.)
UART (5-, 7-, or 8-bit transfer capable)
• F2MC-8L family CPU core
Instruction set optimized for controllers:Multiplication and division instructions
16-bit arithmetic operations
Test and branch instructions
Bit manipulation instructions, etc.
• Four types of timers
8-bit PWM timer: 2 channels (also serve as reload timers)
16-bit timer/counter
21-bit time-base timer
• Two serial interface
8-bit synchronous serial (Switchable transfer direction allows communication with various equipment.)
UART (5-, 7-, or 8-bit transfer capable)

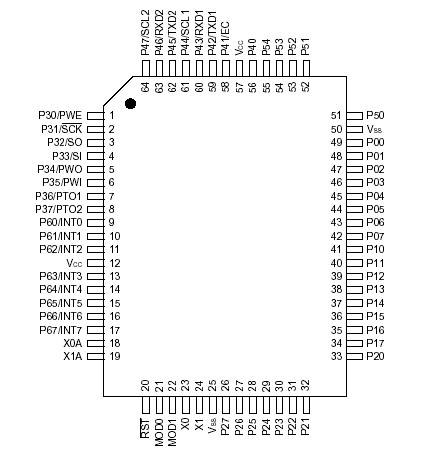

MB89P817A Connection Diagram
MB89P817A
