Product Details

Description



Features:

• F2MC-8L CPU core
• Maximum memory spaces : 64 Kbytes
• Minimum instruction execution time : 0.32 µs to 5.12 µs (at 12.5 MHz)
• Interrupt processing time : 2.88 µs to 46.08 µs (at 12.5 MHz)
• I/O port : Max 22
• 21-bit time base timer
• 8-bit PWM timer
• 8-/16-bit capture timer/counter : 2 ch
• Watchdog timer
• 12-bit PPG timer
• 10-bit A/D converter : 8 ch
• LIN-UART
• 8-bit serial I/O
• External Interrupt : 3 ch
• External or CR (built-in) oscillation clock, switchable
• Low power consumption modes (stop modes, sleep modes)
• Package : SSOP-30,MQFP-48
• CMOS technology


Pinout

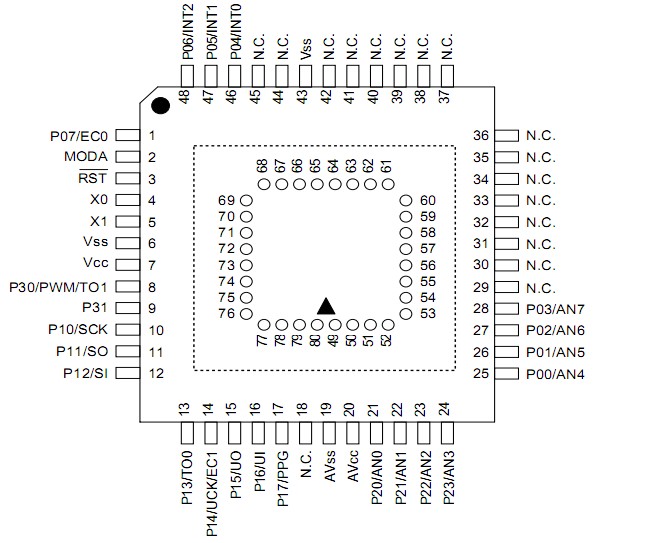

Connection Diagram


Specifications

Parameter Symbol Rating Unit Remarks
Min Max
Power supply voltage VCC VSS − 0.3 VSS + 6.0 V
Input voltage VI VSS − 0.3 VCC + 0.3 V
Output voltage VO VSS − 0.3 VSS + 6.0 V
Maximum clamp current ICLAMP − 0.4 + 0.4 mA
Maximum clamp total current |ICLAMP| − 10 mA
"L" level output current IOL − 10 mA
"L" level average current IOLAV − 4 mA Average value
(operating current * operating duty)
"L" level total output current IOL − 50 mA
"H" level output current IOH − − 10 mA
"H" level average current IOHAV − − 4 mA Average value
(operating current * operating duty)
"H" level total output current IOH − − 50 mA
Power consumption Pd − 200 mW
Storage temperature Tstg − 55 + 150 °C



Description

The MB89PV210 series is a one-chip microcontroller that features a compact instruction set and contains a range of peripheral functions including timers, a serial interface, A/D converters and external interrupts.
