MB89PV670A
-
Suppliers
DataSheet
General Description
MB89PV670A Maximum Ratings
| Parameter | Symbol | Value | Unit | Remarks | |
| Min. | Max. | ||||
| Power supply voltage | VCC | VSS -0.3 | VSS +7.0 | V | * |
| AVCC | VSS -0.3 | VCC +0.3 | V | ||
| A/D converter reference input voltage | AVR | VSS -0.3 | VCC +0.3 | V | AVR must not exceed AVCC + 0.3 V. |
| Input voltage | VI | VSS -0.3 | VCC +0.3 | V | |
| Output voltage | VO1 | VSS -0.3 | VCC +0.3 | V | Except P80 to P85 |
| VO2 | VSS -0.3 | VSS +7.0 | V | P80 to P85 | |
| "L" level maximum output current | IOL | - | 20 | mA | |
| "L" level average output current | IOLAV1 | - | 4 | mA | Average value (operating current * operating rate) |
| IOLAV2 | - | 8 | mA | Average value (operating current * operating rate)P80 to P85 | |
| "L" level total maximum output current | IOL | - | 100 | mA | |
| "L" level total average output current | IOLAV | - | 40 | mA | Average value (operating current* operating rate) |
| "H" level maximum output current | IOH | - | -20 | mA | |
| "H" level average output current | IOHAV | - | -4 | mA | Average value (operating current* operating rate) |
| "H" level total maximum output current | IOH | - | -50 | mA | |
| "H" level total average output current | IOHAV | - | -20 | mA | Average value (operating current* operating rate) |
| Power consumption | PD | - | 300 | mW | |
| Operating temperature | TA | -40 | +85 | °C | |
| Storage temperature | Tstg | 55 | +150 | °C | |
MB89PV670A Features
•F2MC-8L family CPU core
Instruction set optimized for controllers
-Multiplication and division instructions
-16-bit arithmetic operations
-Test and branch instructions
-Bit manipulation instructions, etc.
•High-speed processing at low voltage
•Minimum execution time: 0.4 µs/3.5 V, 0.8 µs/2.7 V, 2.0 µs/2.2 V
•I/O ports: max. 69 channels
Instruction set optimized for controllers
-Multiplication and division instructions
-16-bit arithmetic operations
-Test and branch instructions
-Bit manipulation instructions, etc.
•High-speed processing at low voltage
•Minimum execution time: 0.4 µs/3.5 V, 0.8 µs/2.7 V, 2.0 µs/2.2 V
•I/O ports: max. 69 channels

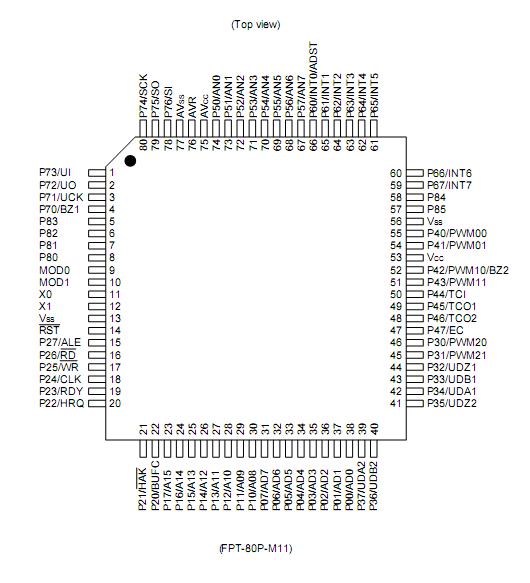

MB89PV670A Connection Diagram
MB89PV670A
