Part Number: MB90098A

MFG: FUJ

Package Cooled: SOP/28

Description: The FUJITSU MB90098A on-screen display controller is designed for use with LCD monitors, operates at a...

MB90098A General Description

The FUJITSU MB90098A on-screen display controller is designed for use with LCD monitors, operates at a maximum dot clock frequency of 140 MHz, and provides demultiplexed output (2-pixel parallel output) .

The maximum display screen configuration is 32 characters × 16 rows, with a maximum resolution of 24 × 32 dots per character making the MB90098A ideal for use with SVGA, XGA, SXGA etc. LCD displays.

A variety of display functions are enabled including sprite characters, background characters, graphics functions etc.

MB90098A Maximum Ratings

(VSS = 0 V Typ.)

Parameter	Symbol	Rating		Unit	Remarks
Parameter	Symbol	Min.	Max.	Unit	Remarks
Power supply voltage	V_DD	V_SS - 0.5	V_SS+ 4.0	V
Input voltage	V_IN	V_SS - 0.5	V_DD + 0.5	V
Output voltage	V_OUT	V_SS - 0.5	V_DD+ 0.5	V
Power consumption	Pd	-	400	mW
Operating temperature	Ta	0	70	°C
Storage temperature	Tstg	-55	+125	°C

WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current, temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.

MB90098A Features

• Main screen display capacity Maximum 32 characters × 16 rows
• Character configuration   L size : 24 dots (h) × 2h* dots (v)
                                          M size : 18 dots (h) × 2h* dots (v)
                                          S size : 12 dots (h) × 2h* dots (v) * : h = 9 to 16
                                          L, M, S sizes can be selected by character
                                          h can be set to 2 values per screen
• Character type 512 character types built in
• Display modes       Normal/graphic characters (set for each character)
                                  Border display (horizontal border /pattern background) (set for each screen)
                                  Character background (solid-fill/shaded) (set for each character)
                                  Row background (solid-fill/shaded) (set for each row)
                                  Enlarged (standard, double height, double width, double height & width) (set for each row)
                                  Blinking : Select blinking character, (set for each character)
                                                 period, duty ratio(set for each screen)
• Sprite character display (graphic display only) Can display 1 block on main screen (Max. 2 characters wide × 2 high) .Only the first 256 characters can be used (code : 000_H to 0FF_H)
• Screen background character display (graphic display only) Repeated pattern below main screen (Max. 2 characters wide × 2 high) . Only the first 256 characters can be used (code : 000_H to 0FF_H)
• Display color   Character color/background color               16 colors each (set for each character)
                          Row background/character border color      16 colors each (set for each row)
                          Screen background color                             16 colors (set for each screen)
                          Graphic character dot color                          16 colors (set for each dot)
                          Shadow background border color                16 colors (set for each screen)
• Display position control Horizontal display start position Vertical display start position Row spacing control
        Control in 4-dot units (set for each screen)
        Control in 4-dot units (set for each screen)
        Control in 2-dot units (set for each row)
• Character/color signal output Choice of straight output or demultiplexed output DA3-DA0 (color signal) , VOBA (OSD display period output signal) DB3-DB0 (color signal) , VOBB (OSD display period output signal)
• Clock frequency 140 MHz
• Microcontroller interface 16-bit serial input (3 signal input pins)
• Package SOP-28
• Supply voltage +3.3 V

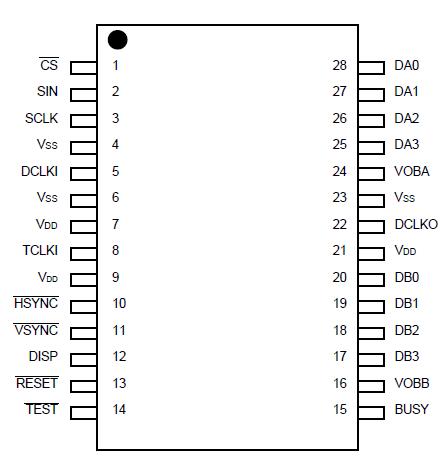

MB90098A Connection Diagram

MB90098A datasheet

MB90050
PDF/DataSheet Download

Datasheet: MB90050
File Size: 760910 KB
Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
Click here to Download
