Features:

• Clock
Operating clock can be selected from divided-by-2, 4, 8 or 32 of oscillation (at oscillation of 32 MHz, 1 MHz
to 16 MHz).
Minimum instruction execution time of 62.5 ns (at machine clock of 16 MHz)
• CPU addressing space of 16 Mbytes
Internal addressing of 24-bit
External accessing can be performed by selecting 8/16-bit bus width (external bus mode)
• Instruction set optimized for controller applications
Rich data types (bit, byte, word, long word)
Rich addressing mode (23 types)
High code efficiency
Enhanced precision calculation realized by the 32-bit accumulator
Signed multiplication/division instruction
• Instruction set designed for high level language (C) and multi-task operations
Adoption of system stack pointer
Enhanced pointer indirect instructions
Barrel shift instructions
• Enhanced execution speed
8-byte instruction queue
• Enhanced interrupt function
Priority levels: 8 levels
External interrupt input ports: 4 ports
• Automatic data transmission function independent of CPU operation
Extended intelligent I/O service function (EI2OS)
• Low-power consumption (stand-by) mode
Sleep mode (mode in which CPU operating clock is stopped)
Stop mode (mode in which oscillation is stopped)
Hardware stand-by mode
Gear function
• Process
CMOS technology
• I/O port
General-purpose I/O ports (CMOS): 38
General-purpose I/O ports (TTL): 11
General-purpose I/O ports (N-ch open-drain): 8
Total: 57
• Timer
Timebase timer/watchdog timer: 1 channel
8-bit PWM timer: 4 channels
16-bit re-load timer: 3 channels
• 16-bit I/O timer
16-bit free-run timer: 1 channel
Input capture (ICU): 2 channels
• I/O simple serial interface
Clock synchronized transmission can be used.
• UART: 1 channel
Clock asynchronized or clock synchronized serial transmission can be selectively used.
• DTP/external interrupt circuit: 4 channels
A module for starting extended intelligent I/O service (EI2OS) and generating an external interrupt triggered
by an external input.
• Delayed interrupt generation module
Generates an interrupt request for switching tasks.
• 8/10-bit A/D converter: 8 channels
8-bit or 10-bit resolution can be selectively used.
Starting by an external trigger input.
• 8-bit D/A converter
Resolution: 8 bits * 3 channels
• DSP interface for the IIR filter
Function dedicated to IIR calculation
Up to eight items of results of signed multiplication of 16 *16 bits are added.
Execution time of : 0.625 ms (When oscillation is 32 MHz and when N = M =3)
Up to three N and M values can be set at your disposal.
        N                     M
Yk = bn Yk n + am Xk m: 0.625 ms (When oscillation is 32 MHz and when N = M =3)
    n = 0               m = 0
Up to three N and M values can be set at your disposal.


Pinout

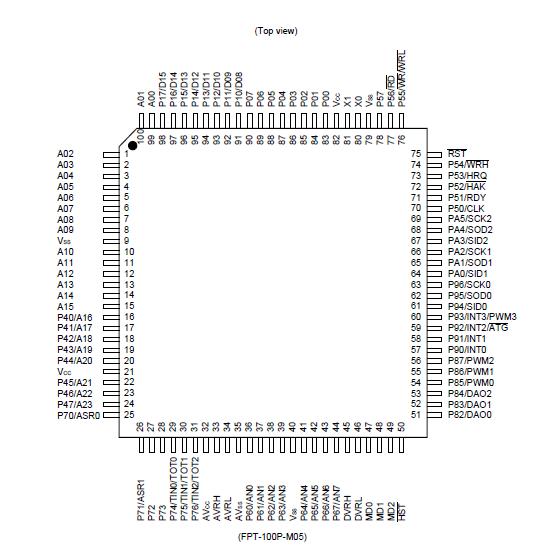

Connection Diagram


Specifications

                                                                                                                                               (AVSS = VSS = 0.0 V)
Parameter Symbol Value Unit Remarks
Min. Max.
Power supply voltage VCC VSS 0.3 VSS + 7.0 V
AVCC VSS 0.3 VSS + 7.0 V *1
AVRH,
AVRL		 VSS 0.3 VSS + 7.0 V *1
DVRH,
DVRL		 VSS 0.3 VSS + 7.0 V *1
Input voltage VI VSS 0.3 VCC + 0.3 V *2
Output voltage VO VSS 0.3 VCC + 0.3 V *2
"L" level maximum output current IOL - 10 mA *3
"L" level average output current IOLAV - 4 mA *4
"L" level total average output current IOLAV - 50 mA *5
"H" level maximum output current IOH - 10 mA *3
"H" level average output current IOHAV - 4 mA *4
"H" level total average output current IOHAV - 48 mA *5
Power consumption PD - 600 mW
Operating temperature TA 30 +70 °C
Storage temperature Tstg 55 +125 °C

*1: AVCC, AVRH, AVRL, DVRH and DVRL shall never exceed VCC.
DVRL shall never exceed DVRH. AVRL shall never exceed AVRH.
*2: VI and VO shall never exceed VCC + 0.3 V.
*3: The maximum output current is a peak value for a corresponding pin.
*4: Average output current is an average current value observed for a 100 ms period for a corresponding pin.
*5: Total average current is an average current value observed for a 100 ms period for all corresponding pins.
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
                 temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.


Description

The MB90246A series is a 16-bit microcontroller optimum to control mechatronics such as a hard disk drive unit.

The instruction set of F2MC-16F CPU core inherits AT architecture of F2MC*-16/16H family with additional instruction sets for high-level languages, extended addressing mode, enhanced multiplication/division instructions, and enhanced bit manipulation instructions. The microcontroller has a 32-bit accumulator for processing long word data (32-bit).

The MB90246A series contains a production addition unit as peripheral resources for enabling easy implementation of functions supported by IIR and FIR digital filters. It also supports a wealth of peripheral functions including:
- an 8/10-bit A/D converter having eight channels;
- an 8-bit D/A converter having three channels;
- UART;
- an 8-bit PWM timer having four channels;
- a timer having three plus one channels;
- an input capture (ICU) having two channels; and
- a DTP/external interrupt circuit having four channels.
* : F2MC stands for FUJITSU Flexible Microcontroller.
