Purchase MB90425G, In-stock MB90425G From SeekIC.
Part Number: MB90425G
Description: The FUJITSU MB90420G/425G Series is a 16-bit general purpose high-capacity microcontroller designed fo...
- Table of contents:
MB90425G
-
Suppliers
DataSheet
General Description
MB90425G General Description
The FUJITSU MB90420G/425G Series is a 16-bit general purpose high-capacity microcontroller designed for vehicle meter control applications etc.
The instruction set retains the same AT architecture as the FUJITSU original F2MC-8L and F2MC-16L series, with further refinements including high-level language instructions, expanded addressing mode, enhanced (signed) multipler-divider computation and bit processing.
In addition, a 32-bit accumulator is built in to enable long word processing.
MB90425G Maximum Ratings
| Parameter | Symbol | Rating | Unit | Remarks | |
| Min | Max | ||||
| Power supply voltage | VCC | VSS - 0.3 | VSS + 6.0 | V | |
| AVCC | VSS - 0.3 | VSS + 6.0 | V | AVCC = VCC*1 | |
| AVRH | VSS - 0.3 | VSS + 6.0 | V | AVCC AVRH | |
| DVCC | VSS - 0.3 | VSS + 6.0 | V | DVCC = VCC*1 | |
| Input voltage | VI | VSS - 0.3 | VCC + 0.3 | V | |
| Output voltage | VO | VSS - 0.3 | VCC + 0.3 | V | |
| Maximum clamp current | ICLAMP | - 400 | + 400 | A | *5 |
| Total maximum clamp current | | ICLAMP | | - | 4 | mA | *5 |
| "L"level maximum output current*2 |
IOL1 | - | 15 | mA | Other than P70-P77, P80-P87 |
| IOL2 | - | 40 | mA | P70-77, P80-87 | |
| "L"level average output current*3 |
IOLAV1 | - | 4 | mA | Other than P70-P77, P80-P87 |
| IOLAV2 | - | 30 | mA | P70-77, P80-87 | |
| "L"level maximum total output current |
IOL1 | - | 100 | mA | Other than P70-P77, P80-P87 |
| IOL2 | - | 300 | mA | P70-77, P80-87 | |
| "L"level average total output current |
IOLAV1 | - | 50 | mA | Other than P70-P77, P80-P87 |
| IOLAV2 | - | 250 | mA | P70-77, P80-87 | |
| "H"level maximum output current |
IOH1*2 | - | -15 | mA | Other than P70-P77, P80-P87 |
| IOH2*2 | - | -40 | mA | P70-77, P80-87 | |
| "H"level average output current |
IOHAV1*3 | - | -4 | mA | Other than P70-P77, P80-P87 |
| IOHAV2*3 | - | -30 | mA | P70-77, P80-87 | |
| "H"level maximum total output current |
IOH1 | - | -100 | mA | Other than P70-P77, P80-P87 |
| IOH2 | - | -330 | mA | P70-77, P80-87 | |
| "H"level average total output current |
IOHAV1*4 | - | -50 | mA | Other than P70-P77, P80-P87 |
| SIOHAV2*4 | - | -250 | mA | P70-77, P80-87 | |
| Power consumption | PD | - | 500 | mW | |
| Operating temperature | TA | -40 | +105 | °C | |
| Storage temperature | TSTG | -55 | +150 | °C | |
*1 : AVCC, AVRH and DVCC shall never exceed VCC. Also, AVRH shall never exceed AVCC.
*2 : Maximum output current is defined as the peak value of the current of any one of the corresponding pins.
*3 : Average output current is defined as the value of the average current flowing over 100 ms at any one of the corresponding pins. The "average value" can be calculated from the formula of "operating current" times "operating factor".
*4 : Average total output current is defined as the value of the average current flowing over 100 ms at all of the corresponding pins. The "average value" can be calculated from the formula of "operating current" times " operating factor".
MB90425G Features
• 16-bit input capture (4 channels)
Detects rising, falling, or both edges.
16-bit capture register × 4
Pin input edge detection latches the 16-bit free-run timer counter value, and generates an interrupt request.
• 16-bit reload timer (2 channels)
16-bit reload timer operation (select toggle output or one-shot output)
Event count function selection provided
Detects rising, falling, or both edges.
16-bit capture register × 4
Pin input edge detection latches the 16-bit free-run timer counter value, and generates an interrupt request.
• 16-bit reload timer (2 channels)
16-bit reload timer operation (select toggle output or one-shot output)
Event count function selection provided

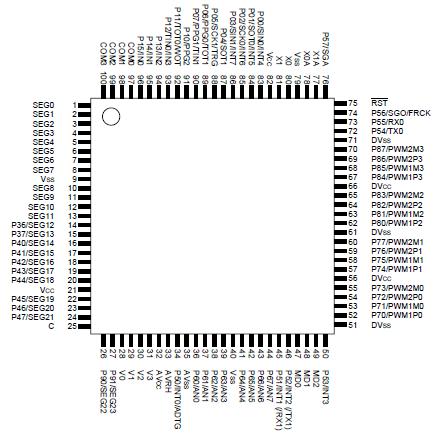

MB90425G Connection Diagram
