Purchase MB90561, In-stock MB90561 From SeekIC.
Package Cooled:QFP D/C:07/08+
Part Number: MB90561
Package Cooled: QFP
D/C: 07/08+
Description: The MB90560/565 series is a general-purpose 16-bit microcontroller designed for industrial, OA, and pr...
- Table of contents:
MB90561
-
Suppliers
DataSheet
General Description
MB90561 General Description
The MB90560/565 series is a general-purpose 16-bit microcontroller designed for industrial, OA, and process control applications that require high-speed real-time processing. The device features a multi-function timer able to output a programmable waveform.
The microcontroller instruction set is based on the same AT architecture as the F2MC-8L and F2MC-16L families with additional instructions for high-level languages, extended addressing modes, enhanced signed multiplication and division instructions, and a complete range of bit manipulation instructions. The microcontroller has a 32-bit accumulator for processing long word (32-bit) data.
MB90561 Features
• Clock
• Internal oscillator circuit and PLL clock multiplication circuit
• Oscillation clock
-Clock speed selectable from either the machine clock, main clock, or PLL clock. The main clock is the oscillation
-clock divided into 2 (0.5 MHz to 8 MHz for a 1 MHz to 16 MHz base oscillation) . The PLL clock is the oscillation
-clock multiplied by one to four (4 MHz to 16 MHz for a 4 MHz base oscillation) .
• Minimum instruction execution time : 62.5 ns (for oscillation = 4 MHz, PLL clock setting = ´ 4, VCC = 5.0 V)
• Maximum CPU memory space : 16 MB
• 24-bit addressing
• Bank addressing
• Internal oscillator circuit and PLL clock multiplication circuit
• Oscillation clock
-Clock speed selectable from either the machine clock, main clock, or PLL clock. The main clock is the oscillation
-clock divided into 2 (0.5 MHz to 8 MHz for a 1 MHz to 16 MHz base oscillation) . The PLL clock is the oscillation
-clock multiplied by one to four (4 MHz to 16 MHz for a 4 MHz base oscillation) .
• Minimum instruction execution time : 62.5 ns (for oscillation = 4 MHz, PLL clock setting = ´ 4, VCC = 5.0 V)
• Maximum CPU memory space : 16 MB
• 24-bit addressing
• Bank addressing

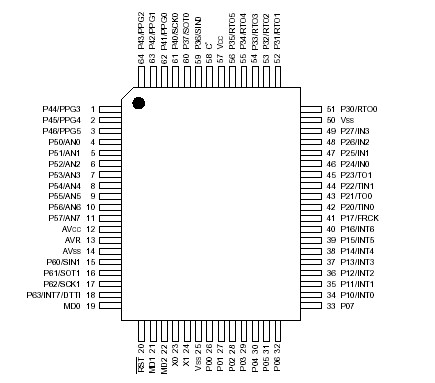

MB90561 Connection Diagram
MB90561
PDF/DataSheet Download
- Datasheet: MB90561
- File Size: 3220036 KB
- Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
- Click here to Download
