MFG:FUJ Package Cooled:STK D/C:0635+
MFG: FUJ
Package Cooled: STK
D/C: 0635+
Description: The MB90650A series are 16-bit microcontrollers designed for high speed real-time processing in consum...

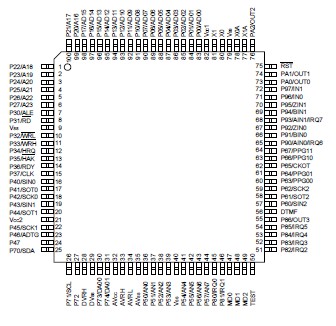

The MB90650A series are 16-bit microcontrollers designed for high speed real-time processing in consumer product applications such as controlling celluar phones, CD-ROMs, or VTRs. Based on the F2MC*1-16L CPU core, an F2MC-16L is used as the CPU. This CPU includes high-level language-support instructions and robust task switching instructions, and additional addressing modes. In order to reduce the consumption current, dualclock (main/sub) is used. Furthermore, low consumption power supply is achieved by using stop mode, sleep mode, watch mode, pseudo-watch mode, CPU intermittent operation mode.
Microcontrollers in this series have built-in peripheral resources including 10-bit A/D converter, 8-bit D/A converter, UART, 8/16-bit PPG, 8/16-bit up/down counter/timer, I2C interface*2, 8/16-bit I/O timer (input capture,output compare, and 16-bit free-run timer).
*1:F2MC stands for FUJITSU Flexible Microcontroller.
*2:Purchase of Fujitsu I2C components conveys a license under the Philips I2C Patent Rights to use these components in an I2C system, provided that the system conforms to the I2C Standard Specification as defined by Philips.
| Parameter | Symbol | Value | Unit |
| |
| Min. | Max. | ||||
| Power supply voltage | VCC1 | VSS 0.3 | VSS + 4.0 | V | MB90652A/653A/654A, MB90F654A |
| VCC2 | VSS 0.3 | VSS + 7.0 | V | MB90P653A | |
| VCC (VCC1 = VCC2) |
VSS 0.3 | VSS + 7.0 | V | MB90652A/653A/654A, MB90F654A | |
| AVCC | VSS 0.3 | VSS+ 4.0 | V | MB90652A/653A/654A, MB90F654A | |
|
VSS 0.3 |
VSS+ 7.0 |
V | MB90P653A *1 | ||
| AVRH AVRL |
VSS 0.3 | VSS + 4.0 | V | MB90652A/653A/654A, MB90F654A | |
|
VSS 0.3 |
VSS+ 7.0 |
V |
MB90P653A | ||
| DVRH | VSS 0.3 | VSS+ 4.0 | V | MB90652A/653A/654A, MB90F654A | |
|
VSS 0.3 |
VSS+ 7.0 |
V |
MB90P653A | ||
| Input voltage | VI | VSS 0.3 | VSS+ 4.0 | V | MB90652A/653A/654A, MB90F654A *2 |
|
VSS 0.3 |
VSS+ 7.0 |
V |
MB90P653A *2,*6 | ||
| Output voltage | VO | VSS 0.3 | VSS + 4.0 | V | MB90652A/653A/654A, MB90F654A *2 |
|
VSS 0.3 |
VSS + 7.0 |
V |
MB90P653A *2,*6 | ||
| "L" level maximum output current |
IOL | - | 10 | mA | MB90652A/653A/654A, MB90F654A *3 |
|
- |
15 |
mA |
MB90P653A *3 | ||
| "L" level average output current | IOLAV | - | 3 | mA | MB90652A/653A/654A, MB90F654A *4 |
|
- |
4 | mA |
MB90P653A *4 | ||
| "L" level total maximum output current |
IOL | - | 60 | mA | MB90652A/653A/654A, MB90F654A |
|
- |
100 |
mA |
MB90P653A | ||
| "L" level total average output current |
IOLAV | - | 30 | mA | MB90652A/653A/654A, MB90F654A *5 |
|
- |
50 |
mA |
MB90P653A *5 | ||
| "H" level maximum output current |
IOH |
- |
10 |
mA |
MB90652A/653A/654A, |
|
- |
15 |
MB90P653A *3 | |||
| "H" level average output current |
IOHAV | - | 3 | mA | MB90652A/653A/654A, MB90F654A *4 |
|
- |
4 |
MB90P653A *4 | |||
| "H" level total maximum output current |
IOH | - | 60 | mA | MB90652A/653A/654A, MB90F654A |
|
- |
100 |
MB90P653A | |||
| "H" level total average output current |
IOHAV | - | 30 | mA | *5 |
| Power consumption | PD | - | 200 | mW | |
| Operating temperature | TA | - | +85 | ||
| Storage temperature | Tstg | - | +150 | ||
• Minimum execution time: 62.5 ns/4 MHz oscillation (Uses PLL clock multiplication) maximum multiplier = 4
• Instruction set optimized for controller applications Object code compatibility with F2MC-16(H)
MB90654A
