Part Number: MB90F244
Description: The MB90F244 is a 16-bit microcontroller optimized for applications in mechatronics such as HDD units....
- Table of contents:
MB90F244
-
Suppliers
DataSheet
General Description
MB90F244 General Description
The MB90F244 is a 16-bit microcontroller optimized for applications in mechatronics such as HDD units. The architecture of the MB90F244 is based on the MB90242A, and embedded with a 128-Kbyte flash memory.
The instruction set is based on the AT architecture of the F2MC* family, with additional high-level language supporting instruction, expanded addressing modes, enhanced multiplication and division instructions, and improved bit processing instructions. In addition, long-word data can now be processed due to the inclusion of a 32-bit accumulator.
The MB90F244 includes a variety of peripherals on chip, such as the device is equipped with 8-channel 8/10-bit A/D converter, UART, 3-channel 16-bit reload timers, 1-channel 16-bit timer, 4-channel 16-bit input capture and 4-channel DTP/external interrupts.
Differences between the MB90F244 and MB90F243 to meet the 3.3 V ±0.3 V power supply voltage are that the power consumption of the MB90F244 is about 10% less than that of the MB90F243 and the operating frequency of the MB90F244 is up to 50 MHz from 32 MHz of the MB90F243.
* : F2MC stands for FUJITSU Flexible Microcontroller.
MB90F244 Maximum Ratings
(AVSS = VSS = 0.0 V)
*1: VCC5 must always exceed VCC.
*2: AVCC, AVRH and AVRL must not exceed VCC. Also AVRL must not exceed AVRH.
*3: VI1 and VO must not exceed VCC + 0.3 V.
*4: VI2 must not exceed VCC5 + 0.3 V.
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
| Parameter | Symbol | Value | Unit | Remarks | |
| Min. | Max. | ||||
| Power supply voltage | VCC | VSS 0.3 | VSS + 4.0 | V | |
| VCC5 | VSS 0.3 | VSS + 7.0 | V | *1 | |
| AVCC | VSS 0.3 | VSS + 4.0 | V | *2 | |
| AVRH | VSS 0.3 | VSS + 4.0 | V | *2 | |
| AVRL | VSS 0.3 | VSS + 4.0 | V | *2 | |
| Input voltage | VI1 | VSS 0.3 | VCC + 0.3 | V | *3 |
| VI2 | VSS 0.3 | VCC5 + 0.3 | V | *4 | |
| Output voltage | VO | VSS 0.3 | VCC + 0.3 | V | *3 |
| "L" level maximum output current | IOL | - | 10 | mA | |
| "L" level average output current | IOLAV | - | 3 | mA | |
| "L" level total maximum output current | IOL | - | 60 | mA | |
| "L" level total average output current | IOLAV | - | 30 | mA | |
| "H" level maximum output current | IOH | - | 10 | mA | |
| "H" level average output current | IOHAV | - | 3 | mA | |
| "H" level total maximum output current | IOH | - | 60 | mA | |
| "H" level total average output current | IOHAV | - | 30 | mA | |
| Power consumption | PD | - | 350 | mW | |
| Operating temperature | TA | 0 | +70 | °C | |
| Storage temperature | Tstg | 55 | +125 | °C | |
*2: AVCC, AVRH and AVRL must not exceed VCC. Also AVRL must not exceed AVRH.
*3: VI1 and VO must not exceed VCC + 0.3 V.
*4: VI2 must not exceed VCC5 + 0.3 V.
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
MB90F244 Features
• Minimum execution time (target): 40.0 ns at 50 MHz oscillation (3.3 V ±0.3 V)
• Instruction set optimized for controller applications
Variety of data types: bit, byte, word, long-word
Expanded addressing modes: 25 types
High coding efficiency
Improvement of high-precision arithmetic operations through use of 32-bit accumulator
Enhanced multiplication and division instructions (signed arithmetic operations)
• Instruction set supports high-level language (C language) and multitasking
Inclusion of system stack pointer
Variety of pointers
High instruction set symmetry
Barrel shift instruction
Stack check function
• Improved execution speed: 8-byte queue
• Powerful interrupt functions
Interrupt processing time: 0.64 ms at 50 MHz oscillation
Priority levels: 8 levels (programmable)
External interrupt inputs: 4 channels
• Automatic transfer function independent of CPU
Extended intelligent I/O service: Max.15 channels
• 128-Kbyte flash memory
Access time (min.) : 80 ns
Sector structure of 16K + 512*2 + 7K + 8K + 32K + 64K
Program/erase operations from both EPROM programmer and CPU through built-in flash memory interface
circuit
Built-in programming booster circuit for flash memory
• Internal RAM: 1.152 kbyte
According to mode settings, data stored on RAM can be executed as CPU instructions.
• General-purpose ports: Max. 63 channels (single-chip mode)
Max. 38 channels (external bus mode)
• 18-bit timebase timer
• Watchdog timer
• UART: 8 bits ´ 1 channel
• 8/16-bit I/O simple serial interface (max. 12.5 Mbps): 1 channel
• 8/10-bit A/D converter: Analog inputs: 8 channels
Resolution: 10 bits (switchable to 8 bits/10 bits)
Conversion time: Min. 1 ms
Conversion result store register: 4 channels
• 16-bit I/O timer
16-bit free-run timer: 1 channel (operating clock: 0.16 ms)
16-bit input capture: 4 channels
• 16-bit reload timer: 3 channels
• Low-power consumption modes
Sleep mode
Stop mode
Hardware standby mode
• Packages: TQFP-80 (FPT-80P-M15)
(For more information about the package, see section "n Package Dimensions.")
• PLL clock multiple function
• CMOS technology
• Power supply voltage: 3.3 V ±0.3 V or 5.0 V ±0.5 V
(Varies with conditions such as the operating frequency. See section
"n Electrical Characteristics.")
• Instruction set optimized for controller applications
Variety of data types: bit, byte, word, long-word
Expanded addressing modes: 25 types
High coding efficiency
Improvement of high-precision arithmetic operations through use of 32-bit accumulator
Enhanced multiplication and division instructions (signed arithmetic operations)
• Instruction set supports high-level language (C language) and multitasking
Inclusion of system stack pointer
Variety of pointers
High instruction set symmetry
Barrel shift instruction
Stack check function
• Improved execution speed: 8-byte queue
• Powerful interrupt functions
Interrupt processing time: 0.64 ms at 50 MHz oscillation
Priority levels: 8 levels (programmable)
External interrupt inputs: 4 channels
• Automatic transfer function independent of CPU
Extended intelligent I/O service: Max.15 channels
• 128-Kbyte flash memory
Access time (min.) : 80 ns
Sector structure of 16K + 512*2 + 7K + 8K + 32K + 64K
Program/erase operations from both EPROM programmer and CPU through built-in flash memory interface
circuit
Built-in programming booster circuit for flash memory
• Internal RAM: 1.152 kbyte
According to mode settings, data stored on RAM can be executed as CPU instructions.
• General-purpose ports: Max. 63 channels (single-chip mode)
Max. 38 channels (external bus mode)
• 18-bit timebase timer
• Watchdog timer
• UART: 8 bits ´ 1 channel
• 8/16-bit I/O simple serial interface (max. 12.5 Mbps): 1 channel
• 8/10-bit A/D converter: Analog inputs: 8 channels
Resolution: 10 bits (switchable to 8 bits/10 bits)
Conversion time: Min. 1 ms
Conversion result store register: 4 channels
• 16-bit I/O timer
16-bit free-run timer: 1 channel (operating clock: 0.16 ms)
16-bit input capture: 4 channels
• 16-bit reload timer: 3 channels
• Low-power consumption modes
Sleep mode
Stop mode
Hardware standby mode
• Packages: TQFP-80 (FPT-80P-M15)
(For more information about the package, see section "n Package Dimensions.")
• PLL clock multiple function
• CMOS technology
• Power supply voltage: 3.3 V ±0.3 V or 5.0 V ±0.5 V
(Varies with conditions such as the operating frequency. See section
"n Electrical Characteristics.")

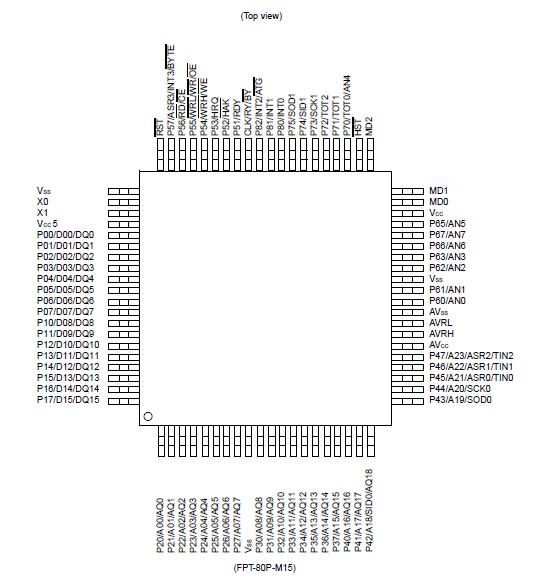

MB90F244 Connection Diagram
MB90F244
PDF/DataSheet Download
- Datasheet: MB90F244
- File Size: 1311929 KB
- Manufacturer: FUJITSU [Fujitsu Media Devices Limited]
- Click here to Download
