MB90P224B
-
Suppliers
DataSheet
General Description
MB90P224B Maximum Ratings
(VSS = AVSS = 0.0 V)
*1: V1 must not exceed VCC + 0.3 V.
*2: Output pins: P00 to P07, P10 to P17, P20 to P27, P30 to P37, P40 to P47, P50 to P57, P70 to P77, P80 to
P87, PA0 to PA7, PB0 to PB7, PC0 to PC5
*3: Output pins: P00 to P07, P10 to P17, P20 to P27, P30 to P37, P40 to P47, P50 to P57, P60 to P67, P70 to
P77, P80 to P87, P90 to P97, PA0 to PA7, PB0 to PB7, PC0 to PC5
WARNING:Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
| Parameter | Symbol | Pin name | Value | Unit | Remarks | |
| Min. | Max. | |||||
| Power supply voltage | VCC | VCC | VSS 0.3 | VVSS + 7.0 | V | |
| Program voltage | VPP | VPP | VSS 0.3 | 13.0 | V | MB90P224A/P224B MB90W224A/W224B |
| Analog power supply voltage | AVCC | AVCC | VSS 0.3 | VCC + 0.3 | V | Power supply voltage for A/D converter |
| AVRH AVRL |
AVRH AVRL |
VSS 0.3 | AVCC | V | Reference voltage for A/D converter | |
| Input voltage | VI *1 | - | VSS 0.3 | VCC + 0.3 | V | |
| Output voltage | VO | *2 | VSS 0.3 | VCC + 0.3 | V | |
| "L" level output current | IOL | *3 | - | 20 | mA | Rush current |
| "L" level total output current | IOL | *3 | - | 50 | mA | Total output current |
| "H" level output current | IOH | *2 | - | 10 | mA | Rush current |
| "H" level total output current | IOH | *2 | - | 48 | mA | Total output current |
| Power consumption | PD | - | - | 650 | mW | |
| Operating temperature | TA | - | 40 | +105 | °C | MB90223/224/P224B/W224B |
| 40 | +85 | °C | MB90P214A/W214A | |||
| Storage temperature | Tstg | - | 55 | +125 | °C | |
*2: Output pins: P00 to P07, P10 to P17, P20 to P27, P30 to P37, P40 to P47, P50 to P57, P70 to P77, P80 to
P87, PA0 to PA7, PB0 to PB7, PC0 to PC5
*3: Output pins: P00 to P07, P10 to P17, P20 to P27, P30 to P37, P40 to P47, P50 to P57, P60 to P67, P70 to
P77, P80 to P87, P90 to P97, PA0 to PA7, PB0 to PB7, PC0 to PC5
WARNING:Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
MB90P224B Features
F2MC-16F CPU
• Minimum execution time: 62.5 ns/16 MHz oscillation (using a duty control system)
• Instruction sets optimized for controllers
Upward object-compatible with the F2MC-16(H)
Various data types (bit, byte, word, and long-word)
Instruction cycle improved to speed up operation
Extended addressing modes: 25 types
High coding efficiency
Access method (bank access with linear pointer)
Enhanced multiplication and division instructions (with signed instructions added)
Higher-precision operation using a 32-bit accumulator
• Extended intelligent I/O service (automatic transfer function independent of instructions)
Access area expanded to 64 Kbytes
• Enhanced instruction set applicable to high-level language (C) and multitasking
System stack pointer
Enhanced pointer-indirect instructions
Barrel shift instruction
Stack check function
• Increased execution speed: 8-byte instruction queue
• Powerful interrupt functions: 8 levels and 28 sources
Peripheral resources
• Mask ROM : 64 Kbytes (MB90223)
96 Kbytes (MB90224)
EPROM : 96 Kbytes (MB90W224A/W224B)
• One-time PROM : 96 Kbytes (MB90P224A/P224B)
• RAM: 3 Kbytes (MB90223)
4.5 Kbytes (MB90224/MB90W224A/P224A/W224B/P224B)
5 Kbytes (MB90V220)
• General-purpose ports: max. 102 channels
• ICU (Input Capture Unit): 4 channels
• 24-bit timer counter: 1 channel
• OCU (Output Compare Unit): 8 channels
• PWC timer with time measurement function: 4 channels
• 10-bit A/D converter: 16 channels
• UART: 4 channels (one channel includes CTS function)
• 16-bit reload timer
Toggled output, external clock, and gate functions: 6 channels
• 16-bit PPG timer: 2 channels
• DTP/External-interrupt inputs: 8 channels (of which five have edge detection function only)
• Write-inhibit RAM: 0.5 Kbytes (1 Kbyte for MB90V220)
• Timebase counter: 18 bits
• Clock gear function
• Low-power consumption mode
Sleep mode
Stop mode
Hardware standby mode
• Minimum execution time: 62.5 ns/16 MHz oscillation (using a duty control system)
• Instruction sets optimized for controllers
Upward object-compatible with the F2MC-16(H)
Various data types (bit, byte, word, and long-word)
Instruction cycle improved to speed up operation
Extended addressing modes: 25 types
High coding efficiency
Access method (bank access with linear pointer)
Enhanced multiplication and division instructions (with signed instructions added)
Higher-precision operation using a 32-bit accumulator
• Extended intelligent I/O service (automatic transfer function independent of instructions)
Access area expanded to 64 Kbytes
• Enhanced instruction set applicable to high-level language (C) and multitasking
System stack pointer
Enhanced pointer-indirect instructions
Barrel shift instruction
Stack check function
• Increased execution speed: 8-byte instruction queue
• Powerful interrupt functions: 8 levels and 28 sources
Peripheral resources
• Mask ROM : 64 Kbytes (MB90223)
96 Kbytes (MB90224)
EPROM : 96 Kbytes (MB90W224A/W224B)
• One-time PROM : 96 Kbytes (MB90P224A/P224B)
• RAM: 3 Kbytes (MB90223)
4.5 Kbytes (MB90224/MB90W224A/P224A/W224B/P224B)
5 Kbytes (MB90V220)
• General-purpose ports: max. 102 channels
• ICU (Input Capture Unit): 4 channels
• 24-bit timer counter: 1 channel
• OCU (Output Compare Unit): 8 channels
• PWC timer with time measurement function: 4 channels
• 10-bit A/D converter: 16 channels
• UART: 4 channels (one channel includes CTS function)
• 16-bit reload timer
Toggled output, external clock, and gate functions: 6 channels
• 16-bit PPG timer: 2 channels
• DTP/External-interrupt inputs: 8 channels (of which five have edge detection function only)
• Write-inhibit RAM: 0.5 Kbytes (1 Kbyte for MB90V220)
• Timebase counter: 18 bits
• Clock gear function
• Low-power consumption mode
Sleep mode
Stop mode
Hardware standby mode

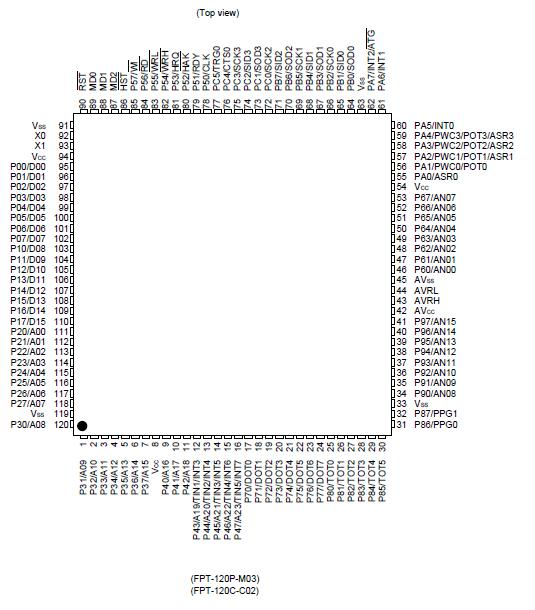

MB90P224B Connection Diagram
MB90P224B
