MB90P634A

Features: * Minimum execution time: 62.5 ns/4 MHz oscillation (Uses PLL clock multiplication), maximum multiplier = 4* Instruction set optimized for controller applications Object code compatibility with F2MC-16(H) Wide range of data types (bit, byte, word, and long word) Improved instruction cycl...

product image

MB90P634A Picture
See larger image
SeekIC No. : 004413885 Detail

MB90P634A: Features: * Minimum execution time: 62.5 ns/4 MHz oscillation (Uses PLL clock multiplication), maximum multiplier = 4* Instruction set optimized for controller applications Object code compatibility...

MB90P634A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MB90P634A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/4/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Minimum execution time: 62.5 ns/4 MHz oscillation (Uses PLL clock multiplication), maximum multiplier = 4
* Instruction set optimized for controller applications
   Object code compatibility with F2MC-16(H)
   Wide range of data types (bit, byte, word, and long word)
   Improved instruction cycles provide increased speed
   Additional addressing modes: 23 modes
   High code efficiency
   Access mothods (bank access, linear pointer)


Pinout

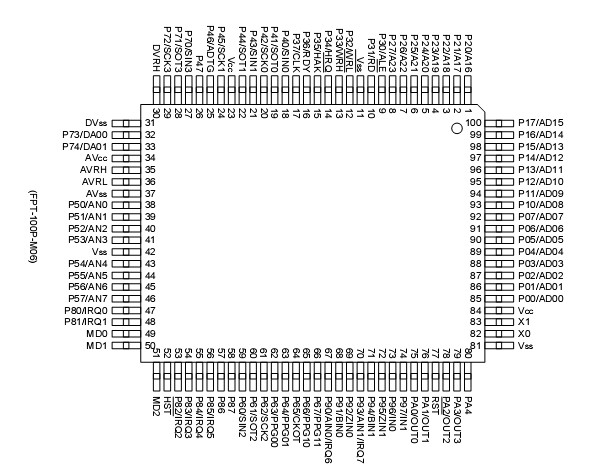

Connection Diagram


Specifications

Parameter Symbol Value Unit Remarks
Min. Max.
Power supply voltage VCC VSS 0.3 VSS + 7.0 V
AVCC VSS 0.3 VSS + 7.0 V
AVRH,AVRL VSS 0.3 VSS + 7.0 V
Program voltage VPP VSS 0.3 - V



Input voltage VI VSS 0.3 VCC + 0.3 V
Output voltage VO VSS 0.3 VCC + 0.3 V
"L" level maximum output current IOL - 15 mA
"L" level average output current IOLAV - 50 mA
"L" level total maximum output current IOL - 100 mA
"L" level total average output current IOLAV - 50 mA
"H" level maximum output current IOL - -15 mA
"H" level average output current IOLAV - -50 mA
"H" level total maximum output current IOL - -100 mA
"H" level total average output current IOLAV - -50 mA
Power consumption PD - +400 mW
Operating temperature TA 40 +85 C
Storage temperature Tstg 55 +150 C



Description

The MB90P634A series are 16-bit microcontrollers designed for high speed real-time processing in consumer product applications such as controlling video cameras, VCRs, or copiers. The series uses the F2MC*-16L CPU.MB90P634A incorporate an eight channels 10-bit A/D converter, two channels 8-bit D/A converter, UART two channels, two channels serial interface, 8/16-bit up/down counter, 16-bit I/O timer (two channels input capture,four channels output compare, and one channel 16-bit free-run timer).

*:  F2MC stands for FUJITSU Flexible Microcontroller.
