MBR1645G, US $ .38-.62 , ON Semiconductor, MBR1645G DataSheet download, circuit diagram from SeekIC.com

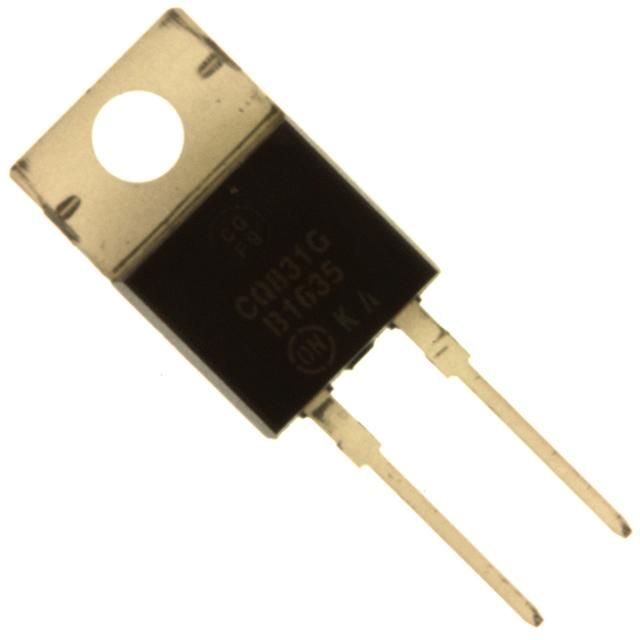

See larger image

SeekIC No. : 00185777 Detail

MBR1645G: Schottky (Diodes & Rectifiers) 16A 45V

MBR1645G Data Sheet

US $ .38~.62 / Piece | Get Latest Price

Part Number:: MBR1645G
Mfg:: ON Semiconductor
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~100
100~500

Unit Price
$.62
$.49
$.43
$.38

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

MBR10 evaluate
Features: ·150°C TJ operation·TO-220 and D2Pak packages·Low forward voltage drop·High purity, high...
MBR10.. Series evaluate
DescriptionSchottky Rectifier, 10 A MBR10.. Series
MBR10..PbF Series evaluate
DescriptionSchottky Rectifier, 10 A MBR10..PbF Series

Product Details

Quick Details

Product :	Schottky Diodes	Peak Reverse Voltage :	45 V
Forward Continuous Current :	16 A	Max Surge Current :	150 A
Configuration :	Single	Forward Voltage Drop :	0.63 V
Maximum Reverse Leakage Current :	200 uA	Operating Temperature Range :	- 65 C to + 175 C
Mounting Style :	Through Hole	Package / Case :	TO-220AC
Packaging :	Tube

Description

Recovery Time :
Maximum Power Dissipation :
Mounting Style : Through Hole
Configuration : Single
Product : Schottky Diodes
Peak Reverse Voltage : 45 V
Packaging : Tube
Maximum Reverse Leakage Current : 200 uA
Package / Case : TO-220AC
Operating Temperature Range : - 65 C to + 175 C
Max Surge Current : 150 A
Forward Continuous Current : 16 A
Forward Voltage Drop : 0.63 V

Parameters:

Technical/Catalog Information	MBR1645G
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io)	16A
Voltage - Forward (Vf) (Max) @ If	630mV @ 16A
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	200A @ 45V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Through Hole, Radial
Package / Case	TO-220-2 (Straight Leads)
Packaging	Tube
Capacitance @ Vr, F	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MBR1645G MBR1645G MBR1645GOS ND MBR1645GOSND MBR1645GOS
