General Description
MBRB2535CTL General Description
The D2PAK Power Rectifier employs the Schottky Barrier principle in a large metaltosilicon power diode. Stateoftheart geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for use in low voltage, high frequency switching power supplies, free wheeling diodes, and polarity protection diodes. These stateoftheart devices have the following features:
• CenterTap Configuration
• Guardring for Stress Protection
• Low Forward Voltage
• 125°C Operating Junction Temperature
• Epoxy Meets UL94, VO at 1/8,
• Guaranteed Reverse Avalanche
• Short Heat Sink Tab Manufactured - Not Sheared!
• Similar in Size to the Industry Standard TO220 Package
MBRB2535CTL Maximum Ratings
|
Rating |
Symbol |
Value |
Unit |
|
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage |
VRRM VRWM VR |
35 |
Volts |
|
Average Rectified Forward Current Per Leg (At Rated VR) TC = +100°C Per Device |
IF(AV) |
12.5 |
Amps |
|
Peak Repetitive Forward Current (At Rated VR, Square Wave, 20 kHz) TC = +100°C |
IFRM |
25 |
Amps |
|
Non-repetitive Peak Surge Current (Surge applied at rated load conditions halfwave, single phase, 60 Hz) |
IFSM |
150 |
Amps |
|
Peak Repetitive Reverse Surge Current (2 s, 1 kHz) |
IRRM |
1.0 |
Amp |
|
Storage Temperature |
Tstg |
55 to +150 |
°C |
|
Operating Junction Temperature |
TJ |
55 to +125 |
°C |
|
Voltage Rate of Change (Rated VR) |
dv/dt |
10000 |
V/s |
MBRB2535CTL
PDF/DataSheet Download
- Datasheet: MBRB2535CTL
- File Size: 108201 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
- ·MBR 1635
- 16 Amp Schottky Barrier Rectifier 20 to 60 Volts
- 117476 KB
- ·MBR 2535
- 25 Amp Schottky Barrier Rectifier 20 to 100 Volts
- 101240 KB
- ·MBR05100
- MCC [Micro Commercial Components]
- 0.5 Amp Schottky Rectifier 20 to 100 Volts
- 92974 KB
- ·MBR05100-M
- FORMOSA [Formosa MS]
- Chip Schottky Barrier Diodes - Silicon epitaxial planer type
- 82582 KB
- ·MBR0520
- MCC [Micro Commercial Components]
- 0.5 Amp Schottky Rectifier 20 to 100 Volts
- 616633 KB
- ·MBR0520L
- FAIRCHILD [Fairchild Semiconductor]
- SCHOTTKY POWER RECTIFIER
- 47201 KB
- ·MBR0520LT1
- MOTOROLA [Motorola, Inc]
- SCHOTTKY BARRIER RECTIFIER 0.5 AMPERES 20 VOLTS
- 162333 KB
- ·MBR0520LT1/D
- SCHOTTKY BARRIER RECTIFIER
- 89673 KB
MBRB2535CTL Relative Products
MBRB2535CT
MBRB2535CT thru MBR2560CT datasheet
MBRB2520CT
MBRB2520

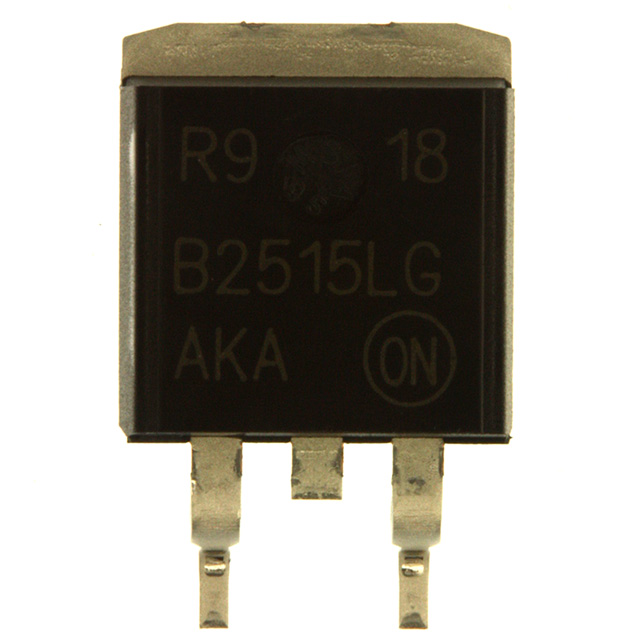

MBRB2515LT4G
