General Description
MC-4516DA727XFA General Description
* The MC-4516DA727XFA is a 16,777,216 words by 72 bits synchronous dynamic RAM module on which 9 pieces of
128M SDRAM: µPD45128841 are assembled.
*These modules provide high density and large quantities of memory in a small space without utilizing the surface-
mounting technology on the printed circuit board.
* Decoupling capacitors are mounted on power supply line for noise reduction.
MC-4516DA727XFA Maximum Ratings
| Parameter | Symbol | Condition | Rating | Unit |
| Voltage on power supply pin relative to GND | VCC | 0.5 to +4.6 | V | |
| Voltage on input pin relative to GND | VT | 0.5 to +4.6 | V | |
| Short circuit output current | IO | 50 | mA | |
| Power dissipation | PD | 10 | W | |
| Operating ambient temperature | TA | 0 to +70 | °C | |
| Storage temperature | Tstg | 55 to +125 | °C |
MC-4516DA727XFA Features
• 16,777,216 words by 72 bits organization (ECC type)
• Clock frequency and access time from CLK.
• Fully Synchronous Dynamic RAM, with all signals referenced to a positive clock edge
• Pulsed interface
• Possible to assert random column address in every cycle
• Quad internal banks controlled by BA0 and BA1 (Bank Select)
• Programmable burst-length (1, 2, 4, 8 and Full Page)
• Programmable wrap sequence (Sequential / Interleave)
• Programmable /CAS latency (2, 3)
• Automatic precharge and controlled precharge
• CBR (Auto) refresh and self refresh
• All DQs have 10 Ω ±10 % of series resistor
• Single 3.3 V ±0.3 V power supply
• LVTTL compatible
• 4,096 refresh cycles/64 ms
• Burst termination by Burst Stop command and Precharge command
• 168-pin dual in-line memory module (Pin pitch = 1.27 mm)
• Registered type
• Serial PD
• Clock frequency and access time from CLK.
| Part number | /CAS latency | Clock frequency (MAX.) |
Access time from CLK (MAX.) |
| MC-4516DA727XFA-A75 | CL = 3 | 133 MHz | 5.4 ns |
| CL = 2 | 100 MHz | 6.0 ns |
• Fully Synchronous Dynamic RAM, with all signals referenced to a positive clock edge
• Pulsed interface
• Possible to assert random column address in every cycle
• Quad internal banks controlled by BA0 and BA1 (Bank Select)
• Programmable burst-length (1, 2, 4, 8 and Full Page)
• Programmable wrap sequence (Sequential / Interleave)
• Programmable /CAS latency (2, 3)
• Automatic precharge and controlled precharge
• CBR (Auto) refresh and self refresh
• All DQs have 10 Ω ±10 % of series resistor
• Single 3.3 V ±0.3 V power supply
• LVTTL compatible
• 4,096 refresh cycles/64 ms
• Burst termination by Burst Stop command and Precharge command
• 168-pin dual in-line memory module (Pin pitch = 1.27 mm)
• Registered type
• Serial PD

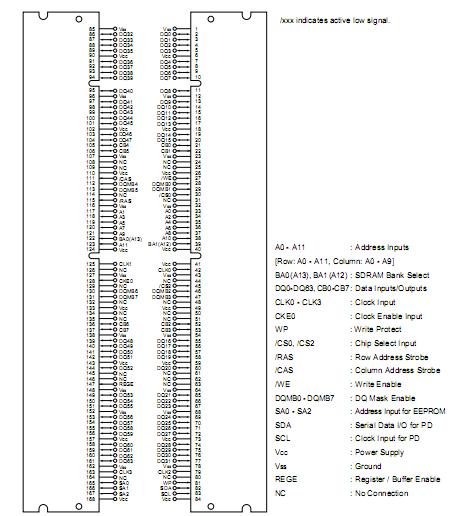

MC-4516DA727XFA Connection Diagram
MC-4516DA727XFA
PDF/DataSheet Download
- Datasheet: MC-4516DA727XFA
- File Size: 178174 KB
- Manufacturer: ELPIDA [Elpida Memory]
- Click here to Download
