The MC-4532DA726 is a 33,554,432 words by 72 bits synchronous dynamic RAM module on which 18 pieces of 128M SDRAM: mPD45128441 are assembled.
These modules provide high density and large quantities of memory in a small space without utilizing the surfacemounting technology on the printed circuit board.
Decoupling capacitors are mounted on power supply line for noise reduction.
MC-4532DA726 Maximum Ratings
| Parameter | Symbol | Condition | Value | Unit |
| Voltage on any pin relative to GND | VT | 0.5 to +4.6 | V | |
| Voltage on input pin relative to GND | VCC | 0.5 to +4.6 | V | |
| Short circuit output current | Io | 50 | mA | |
| Power dissipation | PD | 21 | W | |
| Operating temperature | TA | 0 to +70 | °C | |
| Storage temperature | Tstg | 55 to +125 | °C |
MC-4532DA726 Features
· 33,554,432 words by 72 bits organization (ECC type)
· Clock frequency and access time from CLK
· Fully Synchronous Dynamic RAM, with all signals referenced to a positive clock edge
· Pulsed interface
· Possible to assert random column address in every cycle
· Quad internal banks controlled by BA0 and BA1 (Bank Select)
· Programmable burst-length (1, 2, 4, 8 and Full Page)
· Programmable wrap sequence (Sequential / Interleave)
· Programmable /CAS latency (2, 3)
· Automatic precharge and controlled precharge
· CBR (Auto) refresh and self refresh
· All DQs have 10 W ± 10 % of series resistor
· Single 3.3 V ± 0.3 V power supply
· LVTTL compatible
· 4,096 refresh cycles / 64 ms
· Burst termination by Burst Stop command and Precharge command
· 168-pin dual in-line memory module (Pin pitch = 1.27 mm)
· Registered type
· Serial PD
· Clock frequency and access time from CLK
· Fully Synchronous Dynamic RAM, with all signals referenced to a positive clock edge
· Pulsed interface
· Possible to assert random column address in every cycle
· Quad internal banks controlled by BA0 and BA1 (Bank Select)
· Programmable burst-length (1, 2, 4, 8 and Full Page)
· Programmable wrap sequence (Sequential / Interleave)
· Programmable /CAS latency (2, 3)
· Automatic precharge and controlled precharge
· CBR (Auto) refresh and self refresh
· All DQs have 10 W ± 10 % of series resistor
· Single 3.3 V ± 0.3 V power supply
· LVTTL compatible
· 4,096 refresh cycles / 64 ms
· Burst termination by Burst Stop command and Precharge command
· 168-pin dual in-line memory module (Pin pitch = 1.27 mm)
· Registered type
· Serial PD

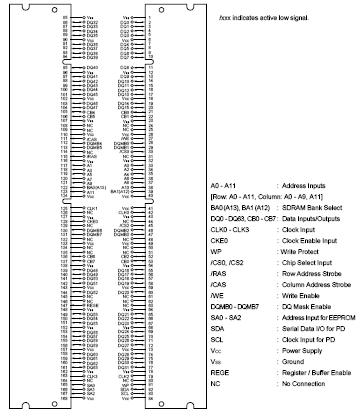

MC-4532DA726 Connection Diagram
MC-4532DA726
PDF/DataSheet Download
- Datasheet: MC-4532DA726
- File Size: 253486 KB
- Manufacturer: NEC [NEC]
- Click here to Download
