Part Number: MC-45V16AD641
Description: The MC-45V16AD641 is a 16,777,216 words by 64 bits VirtualChannel synchronous dynamic RAM module on wh...
- Table of contents:
MC-45V16AD641
-
Suppliers
DataSheet
General Description
MC-45V16AD641 General Description
The MC-45V16AD641 is a 16,777,216 words by 64 bits VirtualChannel synchronous dynamic RAM module on which 16 pieces of 64M VirtualChannel SDRAM : µPD4565821 are assembled.
This module provides high density and large quantities of memory in a small space without utilizing the surface mounting technology on the printed circuit board.Decoupling capacitors are mounted on power supply line for noise reduction.
MC-45V16AD641 Maximum Ratings
| Parameter | Symbol | Condition | Rating | Unit |
| Voltage on power supply pin relative to GND | VCC | 0.5 to +4.6 | V | |
| Voltage on input pin relative to GND | VT | 0.5 to +4.6 | V | |
| Short circuit output current | IO | 50 | mA | |
| Power dissipation | PD | 16 | W | |
| Operating ambient temperature | TA | 0 to +70 | °C | |
| Storage temperature | Tstg | 55 to +125 | °C |
MC-45V16AD641 Features
• 16,777,216 words by 64 bits organization
• Clock frequency and access time from CLK
• Fully Standard Synchronous Dynamic RAM, with all signals referenced to a positive clock edge
• Dual internal banks controlled by BA0 (Bank Select)
• Programmable Wrap sequence (Sequential / Interleave)
• Programmable burst length (1, 2, 4, 8 and 16)• Read latency (2)
• Prefetch Read latency (4)
• Auto precharge and without auto precharge
• Auto refresh and Self refresh
• Single 3.3 V ± 0.3 V power supply
• Interface: LVTTL
• Refresh cycle: 4K cycles / 64 ms
• 168-pin dual in-line memory module (Pin pitch = 1.27 mm)
• Unbuffered type
• Serial PD
• Clock frequency and access time from CLK
• Fully Standard Synchronous Dynamic RAM, with all signals referenced to a positive clock edge
• Dual internal banks controlled by BA0 (Bank Select)
• Programmable Wrap sequence (Sequential / Interleave)
• Programmable burst length (1, 2, 4, 8 and 16)• Read latency (2)
• Prefetch Read latency (4)
• Auto precharge and without auto precharge
• Auto refresh and Self refresh
• Single 3.3 V ± 0.3 V power supply
• Interface: LVTTL
• Refresh cycle: 4K cycles / 64 ms
• 168-pin dual in-line memory module (Pin pitch = 1.27 mm)
• Unbuffered type
• Serial PD

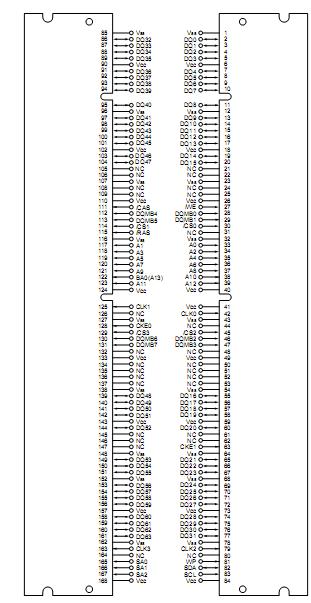

MC-45V16AD641 Connection Diagram
