General Description
MC-9400A General Description
The MC-9400A is a PDP driver module that incorporates five 64-bit high breakdown voltage output (150 V, 40 mA) CMOS driver ICs. It supports 320 outputs in the case of 4-bit parallel input, and 240 outputs in the case of 3-bit parallel input.
The integrated structure of the MC-9400A, which combines a COB with an aluminum heat sink and an output flexible printed circuit (FPC) board, enables the easy implementation of heat dissipation measures and high-density mounting.
MC-9400A Maximum Ratings
| Parameter | Symbol | Ratings | Unit |
| Logic block supply voltage | VDD1 | - 0.5 to + 7.0 | V |
| Driver block supply voltage | VDD2 | - 0.5 to + 150 | V |
| Logic block input voltage | V1 | - 0.5 to VDD1 + 0.5 | V |
| Driver block output current | IO2 | 40 | mA |
| Module allowable power dissipation | PdMAX. | 6Note | W |
| Junction temperature | TjMAX. | 125 | °C |
| Operating ambient temperature | TA | - 10 to + 70 | °C |
| Storage temperature | Tstg | - 40 to + 85 | °C |
Note: The value when mounting this driver module on the aluminum frame by screw.
MC-9400A Features
· Incorporates five mPD16337s with four 16-bit bi-directional shift registers
· Low thermal resistance realized by chip-on-metal structure
· Provided with connector and capacitor for easy mounting on a panel
· Supports output electrode with a narrow pitch through use of a flexible printed circuit board
· Polarity of all driver outputs can be inverted through use of /PC pins
· Supports custom modules
· Low thermal resistance realized by chip-on-metal structure
· Provided with connector and capacitor for easy mounting on a panel
· Supports output electrode with a narrow pitch through use of a flexible printed circuit board
· Polarity of all driver outputs can be inverted through use of /PC pins
· Supports custom modules

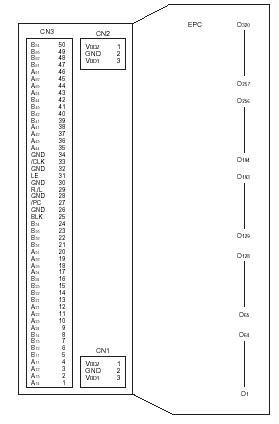

MC-9400A Connection Diagram
