Part Number: MC12429



MFG: MOT

Package Cooled: PLCC



Description: The MC12429 is a general purpose synthesized clock source. Its internal VCO will operate over a range ...


Urgent Purchase

MC12429 General Description


The MC12429 is a general purpose synthesized clock source. Its internal VCO will operate over a range of frequencies from 200 to 400MHz. The differential PECL output can be configured to be the VCO frequency divided by 1, 2, 4, or 8. With the output configured to divide the VCO frequency by 1, and with a 16.000MHz external quartz crystal used to provide the reference frequency, the output frequency can be specified in 1MHz steps. The PLL loop filter is fully integrated so that no external components are required. The output frequency is configured using a parallel or serial interface.

MC12429 Features

• 25 to 400MHz Differential PECL Outputs
• ±25ps PeaktoPeak Output Jitter
• Fully Integrated PhaseLocked Loop
• Minimal Frequency OverShoot
• Synthesized Architecture
• Serial 3Wire Interface
• Parallel Interface for PowerUp
• Quartz Crystal Interface
• 28Lead PLCC and 32Lead LQFP Packages
• Operates from 3.3V or 5.0V Power Supply

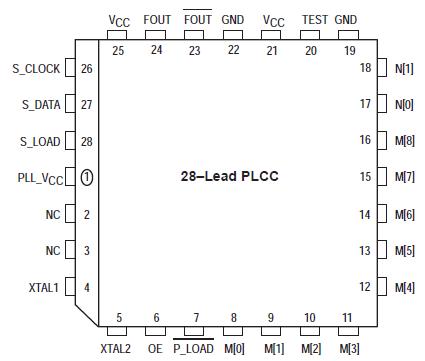

MC12429 Connection Diagram

MC12429 Connection Diagram

MC12429 datasheet
