Purchase MC14001B, In-stock MC14001B From SeekIC.
MFG:ON Package Cooled:SOP14
Part Number: MC14001B
MFG: ON
Package Cooled: SOP14
Description: The B Series logic gates are constructed with P and N channel enhancement mode devices in a single mon...
- Table of contents:
MC14001B
-
Suppliers
DataSheet
General Description
MC14001B General Description
The B Series logic gates are constructed with P and N channel enhancement mode devices in a single monolithic structure (Complementary MOS). Their primary use is where low power
dissipation and/or high noise immunity is desired.
MC14001B Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VDD |
DC Supply Voltage Range |
−0.5 to +18.0 |
V |
|
Vin, Vout |
Input or Output Voltage Range (DC or Transient) |
−0.5 to VDD+ 0.5 |
V |
|
Iin, Iout |
Input or Output Current (DC or Transient) per Pin |
±10 |
mA |
|
PD |
Power Dissipation, per Package (Note 1) |
500 |
mW |
|
TA |
Ambient Temperature Range |
−55 to +125 |
°C |
|
Tstg |
Storage Temperature Range |
−65 to +150 |
°C |
|
TL |
Lead Temperature (8−Second Soldering) |
260 |
°C |
MC14001B Features
Supply Voltage Range = 3.0 Vdc to 18 Vdc
All Outputs Buffered
Capable of Driving Two Low−power TTL Loads or One Low−power
Schottky TTL Load Over the Rated Temperature Range.
Double Diode Protection on All Inputs Except: Triple Diode
Protection on MC14011B and MC14081B
Pin−for−Pin Replacements for Corresponding CD4000 Series
B Suffix Devices
Pb−Free Packages are Available*
All Outputs Buffered
Capable of Driving Two Low−power TTL Loads or One Low−power
Schottky TTL Load Over the Rated Temperature Range.
Double Diode Protection on All Inputs Except: Triple Diode
Protection on MC14011B and MC14081B
Pin−for−Pin Replacements for Corresponding CD4000 Series
B Suffix Devices
Pb−Free Packages are Available*

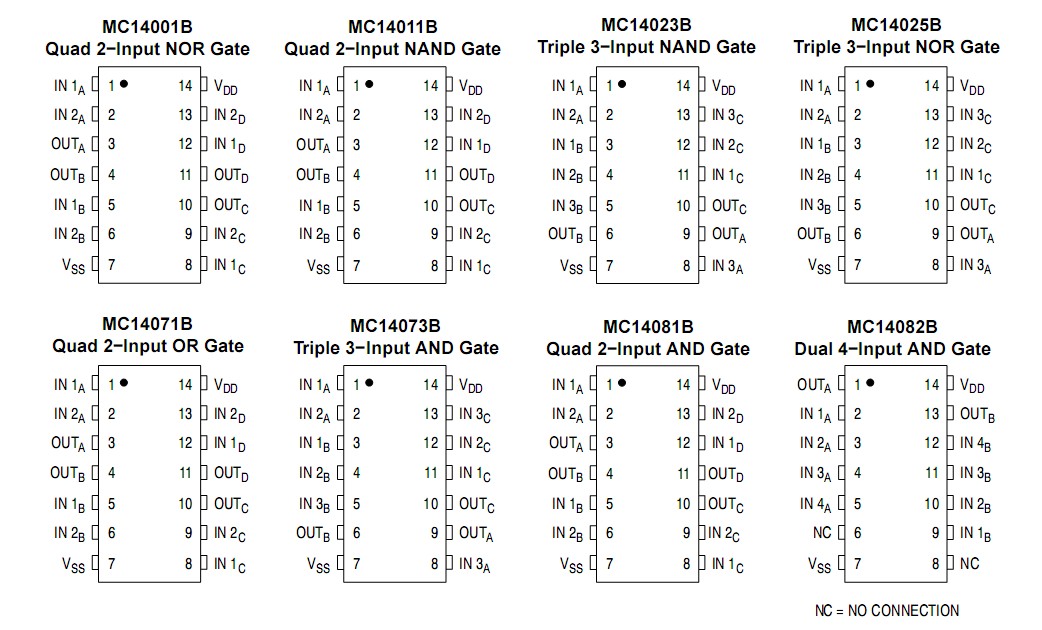

MC14001B Connection Diagram
MC14001B
