Features:

· Low-cost IC, available as die or in QSOP16 and TSSOP20 packages. Fabricated in advanced sub-micron
    BiCMOS process.
· Very wide range of operation; suitable for up to 1.5Gbps. 4mV input sensitivity at 1.25Gbps.
· Pin-compatible, superior replacement for Motorola MC10SX1125
· Microcosm MC2044C/MC2045-2 Pin- Compatible.
· Programmable input-signal level detect. (Onchip default, saving external components)
· Fully differential
· 3.3 volt operation. (5v supported)
· CMOS and PECL Link-Status variants.


Application

When running PECL outputs into a capacitively coupled 50Ω load, 180Ω pull-down resistors are recommended.

If higher impedance lines are used to matched to a higher impedance load, then larger pull-down resistors may be used.


Pinout

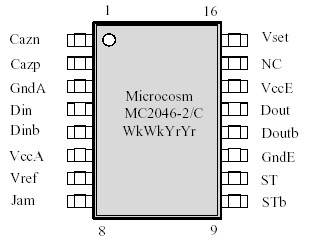

Connection Diagram


Specifications

Symbol
Item
Rating
Units
VCC
 Power supply (Vcc-Gnd)
6
V
Ta
 Operating ambient
-40 to +85
Tstg
 Storage temperature
-65 to +150
These are the absolute maximum ratings at or beyond which the IC can be
expected  to fail or be damaged. Reliable operation at these extremes for any
length of time is  not implied.


Description

The MC2046-2/C is a 2nd-generation, integrated, high gain limiting amplifier intended for high speed fiberoptics based communications. Normally placed following the photodetector and transimpedance or pre-amplifier, the limiting amplifier provides the necessary gain to give PECL compatible logic outputs.

The MC2046-2/C also includes a programmable signal-level detector, allowing the user to set thresholds at which the logic outputs are enabled.

Capable of operating over a very wide frequency range, the MC2046-2 supports most fiberoptic industry standards, but it is especially suited to 1.06Gbps Fiber Channel and 1.25Gbps Ethernet. It is pin and functionally compatible with the Motorola MC10SX1125 and earlier Microcosm Post-amplifiers.

The MC2046-2 die has both PECL and CMOS Status outputs. Packaged, the MC2046-2 has PECL Status outputs and the MC2046-2C has CMOS Status outputs.
