Purchase MC33077, In-stock MC33077 From SeekIC.
MFG:80 Package Cooled:MOT
Part Number: MC33077
MFG: 80
Package Cooled: MOT
Description: The MC33077 is a precision high quality, high frequency, low noise monolithic dual operational amplifi...
- Table of contents:
MC33077
-
Suppliers
DataSheet
General Description
MC33077 General Description
The MC33077 is a precision high quality, high frequency, low noise monolithic dual operational amplifier employing innovative bipolar design techniques. Precision matching coupled with a unique analog resistor trim technique is used to obtain low input offset voltages. Dualdoublet frequency compensation techniques are used to enhance the gain bandwidth product of the amplifier. In addition, the MC33077 offers low input noise voltage, low temperature coefficient of input offset voltage, high slew rate, high AC and DC open loop voltage gain and low supply current drain. The all NPN transistor output stage exhibits no deadband crossover distortion, large output voltage swing, excellent phase and gain margins, low open loop output impedance and symmetrical source and sink AC frequency performance.
The MC33077 is tested over the automotive temperature range and is available in plastic DIP and SO8 packages (P and D suffixes).
MC33077 Maximum Ratings
|
Rating |
Symbol |
Value |
Unit |
| Supply Voltage (VCC to VEE) |
VS |
+36 |
V |
| Input Differential Voltage Range |
VIDR |
(Note 1) |
V |
| Input Voltage Range |
VIR |
(Note 1) |
V |
| Output Short Circuit Duration (Note 2) |
tSC |
Indefinite |
sec |
| Maximum Junction Temperature |
TJ |
+150 |
|
| Storage Temperature |
Tstg |
60 to +150 |
|
| Maximum Power Dissipation |
PD |
(Note 2) |
mW |
2. Power dissipation must be considered to ensure maximum junction temperature (TJ) is not
exceeded (See power dissipation performance characteristic, Figure 1).
MC33077 Features
• Low Voltage Noise: 4.4 nV/Hz @ 1.0 kHz
• Low Input Offset Voltage: 0.2 mV
• Low TC of Input Offset Voltage: 2.0 V/
` High Gain Bandwidth Product: 37 MHz @ 100 kHz
` High AC Voltage Gain: 370 @ 100 kHz
`High AC Voltage Gain: 1850 @ 20 kHz
` Unity Gain Stable: with Capacitance Loads to 500 pF
` High Slew Rate: 11 V/ s
`Low Total Harmonic Distortion: 0.007%
` Large Output Voltage Swing: +14 V to 14.7 V
` High DC Open Loop Voltage Gain: 400 k (112 dB)
` High Common Mode Rejection: 107 dB
` Low Power Supply Drain Current: 3.5 mA
` Dual Supply Operation: ±2.5 V to ±18 V
MC33077 Connection Diagram
MC33077
PDF/DataSheet Download
- Datasheet: MC33077
- File Size: 86665 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
- ·MC306
- ETC [ETC]
- SMALL SMD LOW / MEDIUM-FREQUENCY CRYSTAL UNIT
- 28737 KB
- ·MC3107
- Motorola
- MC3107_Motorola.pdf
- 192160 KB
- ·MC3110
- ETC [ETC]
- Pilot⑩ Motion Processor
- 1104101 KB
- ·MC33001
- STMICROELECTRONICS [STMicroelectronics]
- GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
- 353096 KB
- ·MC33001A
- STMICROELECTRONICS [STMicroelectronics]
- GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
- 353096 KB
- ·MC33001AD
- STMICROELECTRONICS [STMicroelectronics]
- GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
- 353096 KB
- ·MC33001AH
- STMICROELECTRONICS [STMicroelectronics]
- GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
- 353096 KB
- ·MC33001AN
- STMICROELECTRONICS [STMicroelectronics]
- GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
- 353096 KB
MC33077 Relative Products
MC33076
The MC33076 operational amplifier employs bipolar technology with innovative high performance concepts for audio and industrial applications. MC33076 uses high frequency PNP input transistors to improve frequency response. In addition, the amplifier provides...

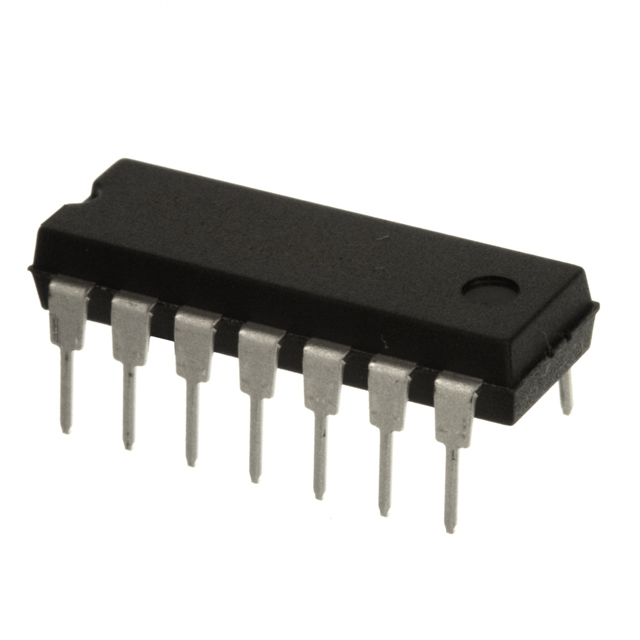

MC33074PG
