MC33079
-
Suppliers
DataSheet
General Description
MC33079 General Description
The MC33078/9 series is a family of high quality monolithic amplifiers employing Bipolar technology with innovative high performance concepts for quality audio and data signal processing applications. This family incorporates the use of high frequency PNP input transistors to produce amplifiers exhibiting low input voltage noise with high gain bandwidth product and slew rate. The all NPN output stage exhibits no deadband crossover distortion, large output voltage swing, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical
source and sink AC frequency performance.
The MC33078/9 family offers both dual and quad amplifier versions, tested over the automotive temperature range and available in the plastic DIP and SOIC packages (P and D suffixes).
MC33079 Maximum Ratings
|
Rating |
Symbol |
Value |
Unit |
| Supply Voltage (VCC to VEE) |
VS |
+36 |
V |
| Input Differential Voltage Range |
VIDR |
(Note 1) |
V |
| Input Voltage Range |
VIR |
(Note 1) |
V |
| Output Short Circuit Duration (Note 2) |
tSC |
Indefinite |
sec |
| Maximum Junction Temperature |
TJ |
+150 |
|
| Storage Temperature |
Tstg |
60 to +150 |
|
| Maximum Power Dissipation |
PD |
(Note 2) |
mW |
2. Power dissipation must be considered to ensure maximum junction temperature (TJ) is not exceeded (see Figure 1).
MC33079 Features
• Dual Supply Operation: ±5.0 V to ±18 V
• Low Voltage Noise: 4.5 nV/Hz
• Low Input Offset Voltage: 0.15 mV
• Low T.C. of Input Offset Voltage: 2.0 mV/
• Low Total Harmonic Distortion: 0.002%
• High Gain Bandwidth Product: 16 MHz
• High Slew Rate: 7.0 V/ms
• High Open Loop AC Gain: 800 @ 20 kHz
• Excellent Frequency Stability
• Large Output Voltage Swing: +14.1 V/ 14.6 V
• ESD Diodes Provided on the Inputs
MC33079 Connection Diagram
MC33079
PDF/DataSheet Download
- Datasheet: MC33079
- File Size: 96060 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
- ·MC306
- ETC [ETC]
- SMALL SMD LOW / MEDIUM-FREQUENCY CRYSTAL UNIT
- 28737 KB
- ·MC3107
- Motorola
- MC3107_Motorola.pdf
- 192160 KB
- ·MC3110
- ETC [ETC]
- Pilot⑩ Motion Processor
- 1104101 KB
- ·MC33001
- STMICROELECTRONICS [STMicroelectronics]
- GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
- 353096 KB
- ·MC33001A
- STMICROELECTRONICS [STMicroelectronics]
- GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
- 353096 KB
- ·MC33001AD
- STMICROELECTRONICS [STMicroelectronics]
- GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
- 353096 KB
- ·MC33001AH
- STMICROELECTRONICS [STMicroelectronics]
- GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
- 353096 KB
- ·MC33001AN
- STMICROELECTRONICS [STMicroelectronics]
- GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
- 353096 KB
MC33079 Relative Products

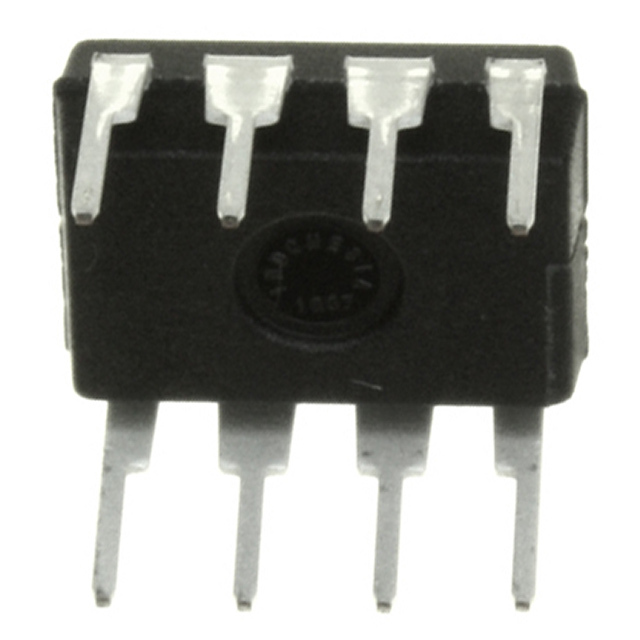

MC33078PG
