Purchase MC33094DW, In-stock MC33094DW From SeekIC.
MFG:MOT
Part Number: MC33094DW
MFG: MOT
Description: Designed for automotive ignition applications in 12 V systems, the MC33094DW provides outstanding cont...
- Table of contents:
MC33094DW
-
Suppliers
DataSheet
General Description
MC33094DW General Description
Designed for automotive ignition applications in 12 V systems, the MC33094DW provides outstanding control of the ignition coil when used with an appropriate Motorola Power Darlington Transistor. Engine control systems utilizing these devices for ignition coil control exhibit exceptional fuel efficiency and low exhaust emissions. The device is designed to be controlled from a singleended Hall Sensor input. The circuit is built using highdensity IntegratedInjection Logic (IIL) processing incorporating high currentgain PNP and NPN transistors.
The MC33094DW is packaged in an economical surface mount package and specified over an ambient temperature of 40°C to 125°C with a maximum junction temperature of 150°C.
MC33094DW Maximum Ratings
| Rating | Symbol | Value | Unit |
| Power Supply Voltage | VCC | 28.6 | V |
| Junction Temperature | TJ | 150 | °C |
| Operating Ambient Temperature Continuous Limited |
TA | -30 to 105 -40 to 125 |
°C |
| Storage Temperature |
Tstg | -55 to 150 | °C |
| Operating Frequency Range |
fop | 1.0 to 400 | Hz |
| Soldering Temperature SO16L (for 10 seconds) |
Tsolder | 270 | °C |
| Soldering Temperature SO16L (for 10 seconds) |
RJA | 97 | °C/W |
MC33094DW Features
• External Capacitors Program the Devices Timing Characteristics
• Overvoltage Shutdown Protection
• Auto StartUp Capability After Overvoltage Condition Ceases
• Allows for Push StartUp in Automotive Applications
• Ignition Coil Current Limiting
• Ignition Coil Voltage Limiting
• Band Gap Reference for Enhanced Stability Over Temperature
• Negative Edge Filter for Hall Sensor Input Transient Protection
• Hall Sensor Inputs for RPM and Position Sensing
• 40°C TA 125°C Ambient Operating Temperature
• Overvoltage Shutdown Protection
• Auto StartUp Capability After Overvoltage Condition Ceases
• Allows for Push StartUp in Automotive Applications
• Ignition Coil Current Limiting
• Ignition Coil Voltage Limiting
• Band Gap Reference for Enhanced Stability Over Temperature
• Negative Edge Filter for Hall Sensor Input Transient Protection
• Hall Sensor Inputs for RPM and Position Sensing
• 40°C TA 125°C Ambient Operating Temperature

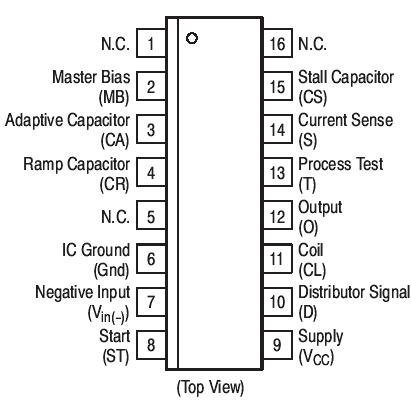

MC33094DW Connection Diagram
