Part Number: MC33171 - MC35171









Description: The MC33171 series are single bipolar operational amplifiers offering both low consumption (200mA) and...


Urgent Purchase

MC33171 - MC35171 General Description


The MC33171 series are single bipolar operational amplifiers offering both low consumption (200mA) and good speed (2.1MHz, 2V/ms).

Moreover the Input Common Mode Range extends down to the lower supply rail, allowing single supply operation from +4V to +44V.

MC33171 - MC35171 Maximum Ratings

Symbol Parameter Value Unit
VCC Supply Voltage ±22 V
Vid Differential Input Voltage (Note 1) V
Vi Input Voltage (Note 1) V
  Output Short Circuit Duration Indefinite S
Toper Operating Temperature Range MC33171
MC35171		 -40 to 105
-55 to 125		 °C
Tj Junction Temperature 150 °C
Tstg Storage Temperature Range 65 to + 150
 °C

MC33171 - MC35171 Features

.GOOD CONSUMPTION/SPEED RATIO :
.ONLY 200mA FOR 2.1MHz, 2V/ms SINGLE (OR DUAL) SUPPLY OPERATION
.FROM +4V TO +44V (±2V TO ±22V) WIDE INPUT COMMON MODE VOLTAGE
RANGE INCLUDING VCC
- .LOW LEVEL OUTPUT VOLTAGE CLOSE TO VCC
. -: 100mV TYPICAL PIN TO PIN COMPATIBLE WITH STANDARD SINGLE OP AMPs

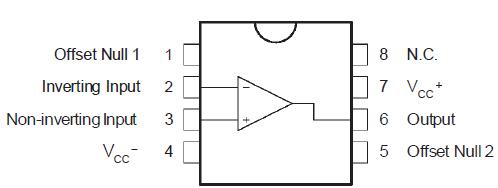

MC33171 - MC35171 Connection Diagram

MC33171 - MC35171 Connection Diagram

MC33171 - MC35171 datasheet
