Part Number: MC33186



MFG: N/A

Package Cooled: SOP

D/C: N/A



Urgent Purchase

MC33186 Maximum Ratings

Ratings
Symbol
Min
Max
Unit
ELECTRICAL RATINGS
Supply Voltage
- Static Destruction Proof
- Dynamic Destruction Proof t < 0,5s
Vbat
Vbat
-1
-2
28
40
V
Logic Inputs (IN1, IN2, DI1, DI2, CODE)
U
-0.5
7
V
Output Status - Flag SF
USF
-0.5
7
V
THERMAL RATINGS
Junction Temperature
Tj
-40
+150
°C
Storage Temperature
Ts
-55
+125
°C
Ambient Temperature
Ta
-40
+125
°C
Thermal Resistance (with power applied
on 2 power MOS)
RthJC
+1,5
K/W

MC33186 Features

• Operating Supply Voltage 5V to 28V
• Overvoltage Protection against Transients up to 40V at Vbat
• RDSon = 150mW for each Output Transistor at 25°C
• Continous DC Load Current 5A (TC < 100°C)
• Output Current Limitation at typ 6,5A +/- 20%
• Short-Circuit Shutdown for Output Currents over 8A
• Logic Inputs TTL/CMOS Compatible
• Operating Frequency up to 20 kHz
• Overtemperature Protection
• Short-Circuit Protection
• Undervoltage Disable Function
• Diagnostic Output
• 2 Disable Inputs
• Coding Input for Alternative Functions
• HSOP20 Power Package
• Stable Operation with an External Capacitance of maximum 47F at Vbat

MC33186 Connection Diagram

MC33186 Connection Diagram

MC33186 datasheet

MC33186
PDF/DataSheet Download

Find MC33186 Suppliers

  • ·MC306
  • ETC [ETC]
  • SMALL SMD LOW / MEDIUM-FREQUENCY CRYSTAL UNIT
  • 28737 KB
  • MC306 Datasheet Download
  • ·MC3107
  • Motorola
  • MC3107_Motorola.pdf
  • 192160 KB
  • MC3107 Datasheet Download
  • ·MC3110
  • ETC [ETC]
  • Pilot⑩ Motion Processor
  • 1104101 KB
  • MC3110 Datasheet Download
  • ·MC33001
  • STMICROELECTRONICS [STMicroelectronics]
  • GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
  • 353096 KB
  • MC33001 Datasheet Download
  • ·MC33001A
  • STMICROELECTRONICS [STMicroelectronics]
  • GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
  • 353096 KB
  • MC33001A Datasheet Download
  • ·MC33001AD
  • STMICROELECTRONICS [STMicroelectronics]
  • GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
  • 353096 KB
  • MC33001AD Datasheet Download
  • ·MC33001AH
  • STMICROELECTRONICS [STMicroelectronics]
  • GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
  • 353096 KB
  • MC33001AH Datasheet Download
  • ·MC33001AN
  • STMICROELECTRONICS [STMicroelectronics]
  • GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
  • 353096 KB
  • MC33001AN Datasheet Download

Related Part Number

MC33186 Relative Products

  • MC33185

    MC33185

  • MC33182

    MC33182

    Quality bipolar fabrication with innovative design concepts are employed for the MC33181/2/4, MC34181/2/4 series of monolithic operational amplifiers. This JFET input series of operational amplifiers operates at 210 mA per amplifier and offers 4.0 MHz of gai...

  • MC33181

    MC33181

    Quality bipolar fabrication with innovative design concepts are employed for the MC33181/2/4, MC34181/2/4 series of monolithic operational amplifiers. This JFET input series of operational amplifiers operates at 210 mA per amplifier and offers 4.0 MHz of gai...

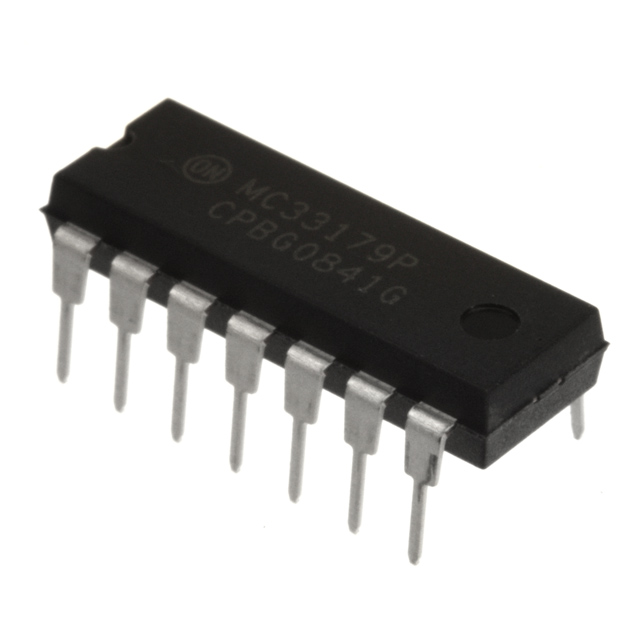

  • MC33179PG
