Part Number: MC33342



MFG: MOT

Package Cooled: SMD



Description: The MC33340 and MC33342 are monolithic control IC's that are specifically designed as fast charge controllers for Nicke...


Urgent Purchase

MC33342 General Description


The MC33340 and MC33342 are monolithic control IC's that are specifically designed as fast charge controllers for Nickel Cadmium (NiCd) and Nickel Metal Hydride (NiMH) batteries. These devices feature negative slope voltage detection as the primary means for fast charge termination. Accurate detection is ensured by an output that momentarily interrupts the charge current for precise voltage sampling. An additional secondary backup termination method can be selected that consists of either a programmable time or temperature limit. Protective features include battery over and undervoltage detection, latched over temperature detection, and power supply input undervoltage lockout with hysteresis. Fast charge holdoff time is the only difference between the MC33340 and the MC33342. The MC33340 has a typical holdoff time of 177 seconds and the MC33342 has a typical holdoff time of 708 seconds.

MC33342 Maximum Ratings

Rating Symbol Value Unit
Power Supply Voltage (Pin 8) VCC 18 V
Input Voltage Range
    Time/Temperature Select (Pins 5, 6, 7)
    Battery Sense, Note 1 (Pin 1)
VIR(t/T)
VIR(sen)
1.0 to VCC
1.0 to VCC + 0.6 or 1.0 to 10		 V
Vsen Gate Output (Pin 2)
    Voltage
    Current
VO(gate)
IO(gate)
20
50
V
mA
Fast/Trickle Output (Pin 3)
    Voltage
    Current
VO(F/T)
IO(F/T)
20
50
V
mA
Thermal Resistance, JunctiontoAir
    P Suffix, DIP Plastic Package, Case 626
    D Suffix, SO8 Plastic Package, Case 751 		RJA
100
178		 °C/W
Operating Junction Temperature TJ +150 °C
Operating Ambient Temperature (Note 2) TA 25 to +85 °C
Storage Temperature Tstg 55 to +150 °C
NOTE: ESD data available upon request.

MC33342 Features

• Negative Slope Voltage Detection with 4.0 mV Sensitivity
• Accurate Zero Current Battery Voltage Sensing
• High Noise Immunity with Synchronous VFC/Logic
• Programmable 1 to 4 Hour Fast Charge Time Limit
• Programmable Over/Under Temperature Detection
• Battery Over and Undervoltage Fast Charge Protection
• Power Supply Input Undervoltage Lockout with Hysteresis
• Operating Voltage Range of 3.0 V to 18 V
• 177 seconds Fast Change Holdoff Time (MC33340)
• 708 seconds Fast Change Holdoff Time (MC33342)

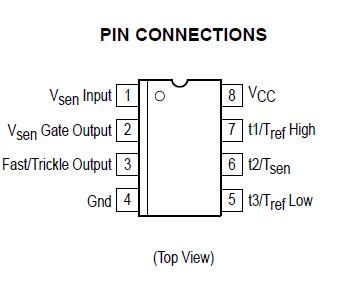

MC33342 Connection Diagram

MC33342 Connection Diagram
