Part Number: MC33363B
Description: The MC33363B is a monolithic high voltage switching regulator that is specifically designed to operate from a rectified...
- Table of contents:
MC33363B
-
Suppliers
DataSheet
General Description
MC33363B General Description
The MC33363B is a monolithic high voltage switching regulator that is specifically designed to operate from a rectified 240 Vac line source. This integrated circuit features an onchip 700 V/1.0 A SenseFET power switch, 450 V active offline startup FET, duty cycle controlled oscillator, current limiting comparator with a programmable threshold and leading edge blanking, latching pulse width modulator for double pulse suppression, high gain error amplifier, and a trimmed internal bandgap reference. Protective features include cyclebycycle current limiting, input undervoltage lockout with hysteresis, overvoltage protection, and thermal shutdown. This device is available in a 16lead dualinline and wide body surface mount packages.
MC33363B Maximum Ratings
| Rating | Symbol | Value | Unit |
| Power Switch (Pin 16) Drain Voltage Drain Current |
V DS I DS |
700 1.0 |
V A |
Startup Input Voltage (Pin 1, Note 1) Pin 3 = Gnd Pin 3 1000 F to ground |
Vin |
400 500 |
V |
Power Supply Voltage (Pin 3) |
VCC |
40 |
V |
Input Voltage RangeVoltage Feedback Input (Pin 10) Compensation (Pin 9) Overvoltage Protection Input (Pin 11) R (Pin 6) TCT (Pin 7) |
VIR |
1.0 to Vreg |
V |
| Thermal Characteristics P Suffix, DualInLine Case 648E Thermal Resistance, JunctiontoAir Thermal Resistance, JunctiontoCase DW Suffix, Surface Mount Case 751GThermal Resistance, JunctiontoAir Thermal Resistance, JunctiontoCase |
RJA RJC RJA RJC |
80 15 95 15 |
°C/W |
Operating Junction Temperature |
TJ |
25 to +150 |
|
Storage Temperature |
Tstg |
55 to +150 |
MC33363B Features
• OnChip 700 V, 1.0 A SenseFET Power Switch
• Rectified 240 Vac Line Source Operation
• OnChip 450 V Active OffLine Startup FET
• Latching PWM for Double Pulse Suppression
• CycleByCycle Current Limiting
• Input Undervoltage Lockout with Hysteresis
• OverVoltage Protection
• Trimmed Internal Bandgap Reference
• Internal Thermal Shutdown
• Rectified 240 Vac Line Source Operation
• OnChip 450 V Active OffLine Startup FET
• Latching PWM for Double Pulse Suppression
• CycleByCycle Current Limiting
• Input Undervoltage Lockout with Hysteresis
• OverVoltage Protection
• Trimmed Internal Bandgap Reference
• Internal Thermal Shutdown

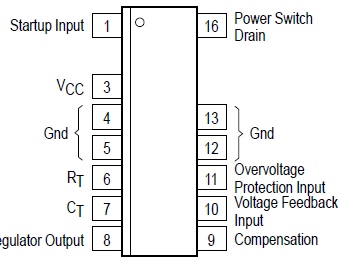

MC33363B Connection Diagram
MC33363B
