Purchase MC33390, In-stock MC33390 From SeekIC.
MFG:ON Package Cooled:SOP-8
Part Number: MC33390
MFG: ON
Package Cooled: SOP-8
Description: The 33390 is a serial transceiver designed to provide bi-directional halfduplex communication meeting ...
- Table of contents:
MC33390
-
Suppliers
DataSheet
General Description
MC33390 General Description
The 33390 is a serial transceiver designed to provide bi-directional halfduplex communication meeting the automotive SAE Standard J-1850 Class B Data Communication Network Interface specification. It is designed to interface directly to on-board vehicle microcontrollers and serves to transmit and receive data on a single-wire bus at data rates of 10.4 kbps using Variable Pulse Width Modulation (VPWM). The 33390 operates directly from a vehicle's 12 V battery system and functions in a logic fashion as an I/O interface between the microcontroller's 5.0 V CMOS logic level swings and the required 0 V to 7.0 V waveshaped signal swings of the bus. The bus output driver is short circuit current limited.
MC33390 Maximum Ratings
| Rating | Symbol | Value | Unit |
| VBAT DC Supply Voltage (Note 1) | VBAT | -0.3 to 40 | V |
| Input I/O Terminals (Note 2) | VI/O(CPU) | -0.3 to 7.0 | V |
| BUS and LOAD Outputs | VBUS | -2.0 to 16 | V |
| ESD Voltage Human Body Model (Note 3) Machine Model (Note 4) |
VESD1 VESD2 |
±2000 ±200 |
V |
| Storage Temperature | TSTG | -65 to 150 | °C |
| Operating Ambient Temperature | TA | -40 to 125 | °C |
| Operating Junction Temperature | TJ | -40 to 150 | °C |
| Soldering Temperature (for 10 seconds) | TSOLDER | 260 | °C |
| Thermal Resistance (Junction-to-Ambient) | RJ-A | 180 | °C/W |
1. An external series diode must be used to provide reverse battery protection of the device.
2. SLEEP, TX, RX, and 4X/LOOP are normally connected to a microcontroller.
3. ESD1 testing is performed in accordance with the Human Body Model (CZAP=100 pF, RZAP=1500 ).
4. ESD2 testing is performed in accordance with the Machine Model (CZAP=200 pF, RZAP=0 ).
MC33390 Features
• Designed for SAE J-1850 Class B Data Rates
• Full Operational Bus Dynamics Over a Supply Voltage of 9.0 to 16 V
• Ambient Operating Temperature of -40°C to 125°C
• Interfaces Directly to Standard 5.0 V CMOS Microcontroller
• BUS Pin Protected Against Shorts to Battery and Ground
• Thermal Shutdown with Hysteresis
• Voltage Waveshaping of Bus Output Driver
• 40 V Max VBAT Capability
• Full Operational Bus Dynamics Over a Supply Voltage of 9.0 to 16 V
• Ambient Operating Temperature of -40°C to 125°C
• Interfaces Directly to Standard 5.0 V CMOS Microcontroller
• BUS Pin Protected Against Shorts to Battery and Ground
• Thermal Shutdown with Hysteresis
• Voltage Waveshaping of Bus Output Driver
• 40 V Max VBAT Capability
MC33390 Connection Diagram
MC33390
PDF/DataSheet Download
- Datasheet: MC33390
- File Size: 188484 KB
- Manufacturer:
- Click here to Download
- ·MC306
- ETC [ETC]
- SMALL SMD LOW / MEDIUM-FREQUENCY CRYSTAL UNIT
- 28737 KB
- ·MC3107
- Motorola
- MC3107_Motorola.pdf
- 192160 KB
- ·MC3110
- ETC [ETC]
- Pilot⑩ Motion Processor
- 1104101 KB
- ·MC33001
- STMICROELECTRONICS [STMicroelectronics]
- GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
- 353096 KB
- ·MC33001A
- STMICROELECTRONICS [STMicroelectronics]
- GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
- 353096 KB
- ·MC33001AD
- STMICROELECTRONICS [STMicroelectronics]
- GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
- 353096 KB
- ·MC33001AH
- STMICROELECTRONICS [STMicroelectronics]
- GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
- 353096 KB
- ·MC33001AN
- STMICROELECTRONICS [STMicroelectronics]
- GENERAL PURPOSE SINGLE JEFT OPERATIONAL AMPLIFIERS
- 353096 KB
MC33390 Relative Products

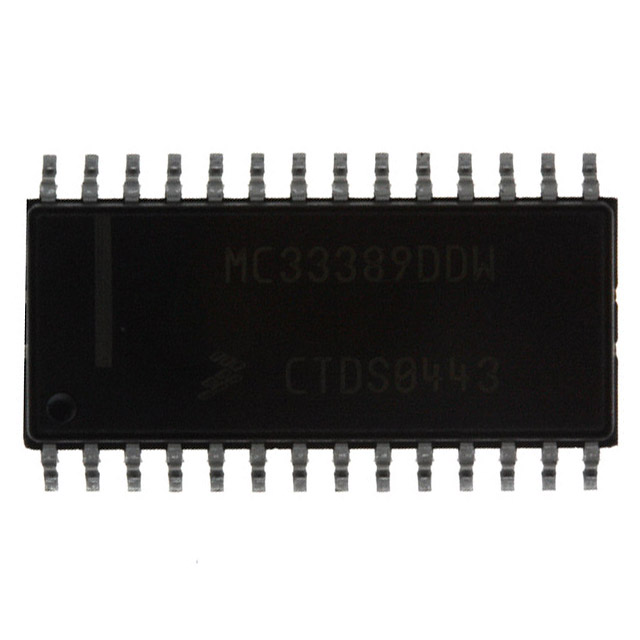

MC33389DDWR2
