Purchase MC33399, In-stock MC33399 From SeekIC.
MFG:MOT Package Cooled:SOP-8 D/C:08+
- Table of contents:
MC33399
-
Suppliers
DataSheet
General Description
MC33399 Maximum Ratings
| Ratings | Symbol | Min | Typ | Max | Unit |
| VSUP - Continuous Supply Voltage - Transient Voltage (Load dump) Wake DC & Transient Voltage (Through a 33kohms serial resistor) Logic pins (Rx, Tx, EN) |
VSUP VSUP Vwake Vlog |
-18V - 0.3 |
+27 +40 +40 5.5 |
V V V | |
| LIN - DC voltage - Transient (coupled through 1nF capacitor) INH - DC Voltage - Transient Voltage ESD Human Body Model (100pF, 1.5 kOhms) - All Pins, Except LIN Pin - LIN Pin ESD Machine Model (220pF, 0 Ohms) - All Pins |
Vbus Vinh VHesd VMesd |
-18 -150 -0.3 tbd -2 -4 -200 |
+40 +100 Vsup+0.3 tbd +2 +4 +200 |
V V kV V |
MC33399 Features
• Speed Communication from 1 to 20Kb/s
• Nominal Operation from VSUP 8 to 18V DC
• Fully Functional up to 27V DC battery voltage.
• 40V maximum Voltage during Load Dump
• Handle from +40V to -18V DC voltage at LIN pin
• Gnd disconnection fail safe at module level
• An Unpowered Node does not disturb the network
• GND Shift Operation at system level
• Two Operation Modes: Normal and Sleep Mode
• Very Low Standby Current during Sleep Mode 20uA
• Wake-up Capability from LIN bus, MCU command and dedicated high voltage wake up input (interface to external switch)
• Interface to MCU with CMOS compatible I/O pins
• Control of External Voltage Regulator
• LIN bus Threshold Voltage fully Compatible with LIN protocol specification
• Bus slew rate control according to LIN protocol specification recommendations (2V/us typ.)
• Internal pull up resistor
• Handle Automotive Transients per ISO9137 Specification
• ESD 4KV on LIN bus Pin
• High EMC Immunity
• Nominal Operation from VSUP 8 to 18V DC
• Fully Functional up to 27V DC battery voltage.
• 40V maximum Voltage during Load Dump
• Handle from +40V to -18V DC voltage at LIN pin
• Gnd disconnection fail safe at module level
• An Unpowered Node does not disturb the network
• GND Shift Operation at system level
• Two Operation Modes: Normal and Sleep Mode
• Very Low Standby Current during Sleep Mode 20uA
• Wake-up Capability from LIN bus, MCU command and dedicated high voltage wake up input (interface to external switch)
• Interface to MCU with CMOS compatible I/O pins
• Control of External Voltage Regulator
• LIN bus Threshold Voltage fully Compatible with LIN protocol specification
• Bus slew rate control according to LIN protocol specification recommendations (2V/us typ.)
• Internal pull up resistor
• Handle Automotive Transients per ISO9137 Specification
• ESD 4KV on LIN bus Pin
• High EMC Immunity

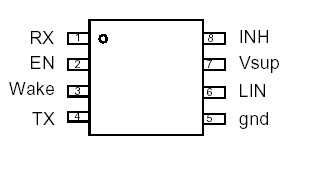

MC33399 Connection Diagram
MC33399
PDF/DataSheet Download
- Datasheet: MC33399
- File Size: 114666 KB
- Manufacturer: Motorola
- Click here to Download
