Part Number: MC33591



MFG: MOT

Package Cooled: QFP

D/C: 01+



Urgent Purchase

MC33591 Maximum Ratings

Parameter
Symbol
Value
Unit
Supply Voltage

VCC
VCCLNA

VGND - 0.3 to 5.5

V
Voltage Allowed on Each Pin


VGND - 0.3
to VCC + 0.3
V
ESD HBM Voltage Capability on Each Pin (note 1)


±2000
V
ESD MM Voltage Capability on Each Pin (note 2)


±200
V
Solder Heat Resistance Test (10 s)

260
°C
Storage Temperature

Ts

-65 to +150
°C
Junction Temperature

Tj

150
°C

MC33591 Features

• 315MHz, 434MHz Bands
• OOK and FSK Demodulation
• Low Current Consumption: 5mA Typ. in Run Mode
• Internal or External Strobing
• Fast Wake-Up Time (1ms)
• -105dBm RF Sensitivity (at 4.8kBd Data Rate)
• Fully Integrated VCO
• Image Cancelling Mixer
• Integrated IF Bandpass Filter at 660kHz
• IF Bandwidth: 500kHz
• ID Byte and Tone Detection
• Data Rate: 1 to 11kBd
• Manchester Coded Data Clock Recovery
• Fully Configurable by SPI Interface
• Few External Components, no RF Adjustment

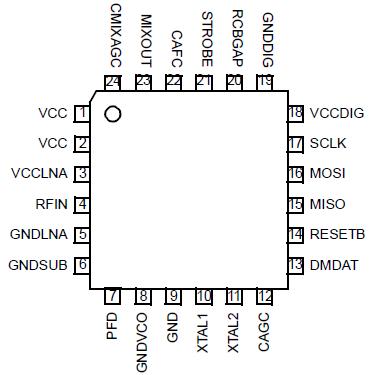

MC33591 Connection Diagram

MC33591 Connection Diagram

MC33591 datasheet
