Part Number: MC33593











Urgent Purchase

MC33593 Maximum Ratings

Parameter
Symbol
Value
Unit
Supply Voltage
VCC
VCCLNA
VGND - 0.3 to 5.5
V
Voltage Allowed on Each Pin
VGND - 0.3
to VCC + 0.3
V
ESD HBM Voltage Capability on Each Pin (note 1)
±2000
V
ESD MM Voltage Capability on Each Pin (note 2)
±200
V
Solder Heat Resistance Test (10 s)
260
°C
Storage Temperature
Ts
-65 to +150
°C
Junction Temperature
Tj
150
°C
Notes:
1 Human Body model, AEC-Q100-002 Rev. C.
2 Machine Model, AEC-Q100-003 Rev. E.

MC33593 Typical Application

• 868MHz, 902-928MHz Bands
• OOK and FSK Demodulation
• Low Current Consumption: 7mA Typ. in Run Mode
• Internal or External Strobing
• Fast Wake-Up Time (1ms)
• -105dBm RF Sensitivity (at 4.8kBd Data Rate)
• Fully Integrated VCO
• Image Cancelling Mixer
• Integrated IF Bandpass Filter at 660kHz
• IF Bandwidth: 500kHz
• ID Byte and Tone Detection
• Data Rate: 1 to 11kBd
• Manchester Coded Data Clock Recovery
• Fully Configurable by SPI Interface
• Few External Components, no RF Adjustment

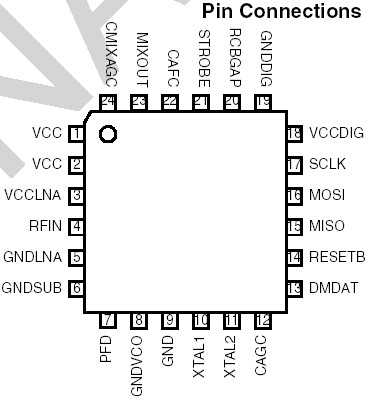

MC33593 Connection Diagram

MC33593 Connection Diagram
